A [schema](/docs/assets/brickworks/quick-start/creating-a-schema) may include a number of different types of data fields: - Simple types - static, atomic values and expect data entries that strictly conform to their specified types. Can be set as searchable unique. - Complex types - structured or grouped data, allowing for more complex and flexible data representations beyond simple atomic values. - Dynamic types - Jinjava inserts and data pulled from external sources. - Relations - data retrieved from records in other schemas. - Synerise objects - leverage existing data within Synerise by adding Synerise objects as fields. These objects enable advanced personalization and dynamic content. To learn more, see [Synerise objects](/docs/assets/brickworks/synerise-objects). - Assets - files from the [Files Explorer](/docs/assets/files-explorer). ## Common field properties These properties exist in multiple field types: - **Display name**: A human-readable name for the field, shown in the record editor. - **API name**: A system name for the field. - In the `{{ record.APIname }}` insert, this name is the `APIname` - When retrieving/creating/updating a record with the API, this name is the identifier of the field. - When generating an object from a record, this is the name of the key that stores the field's value. - **Description**: A human-readable description of the field's purpose, shown in the record editor. - **Block record-level overwriting**: Disables changing any values in this field in individual records. You must provide a default value, which will be applied to all records in the schema. - **Conditional visibility**: Enforces adding a value to a field when another field meets a condition. See [explanation below](#conditional-visibility). - **Use as record title**: If the record doesn't have a set name, the value of the field is used as the name. - **Required field**: A record can only be saved if a value for this field is provided. - **Default value**: The provided value will be used for object generation in records where a value is not set. This is only used when a value isn't defined in a record. It is **not a fallback**. For example, if an expression referenced in a record returns null or an error, the system **doesn't** use the default value. - **Unique values only**: No other record in the schema may have the same value for this field. You can use this to store your own unique record identifiers. The number of fields with this setting is [limited](/docs/assets/brickworks/limits). - **Enable search & filtering**: The value can be used when searching and filtering records. The number of fields with this setting is [limited](/docs/assets/brickworks/limits). ### Conditional visibility You can enforce entering a value into a field when another field meets a condition. If the condition isn't met, the field with this setting isn't visible in the schema editor/viewer. The field that appears when the condition is met must have a default value (because it's required). **Example**:

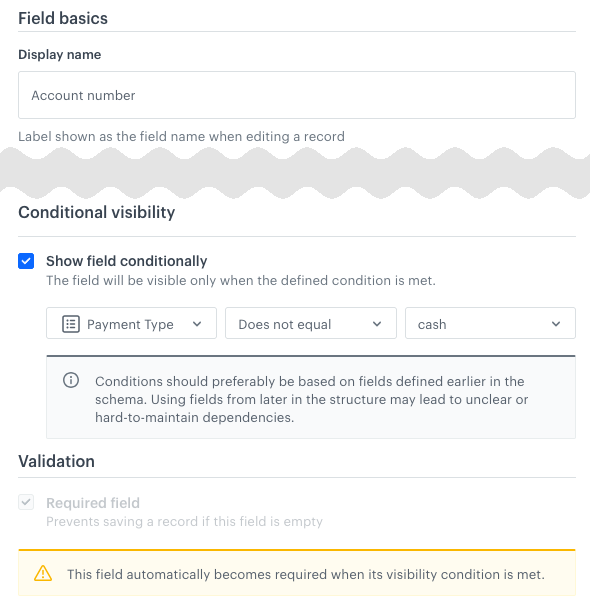

Conditional display example: the Account number field is only available (and must be filled) when the Payment Type field (enumeration) is not cash
the Account number field is only available (and must be filled) when the Payment Type field (enumeration) is not "cash"
**Operators**: The available operators depend on the type of the field that is checked: | String | Number | Boolean | Enumeration | | --- | --- | --- | --- | | | | | | ## Field type summary ### Simple types | Field name | Stored values | Primitive data type | Can be searchable1 | Can be unique2 | Accepts Jinjava | Nullable | | ------------------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | --- | | [String](#string) | Static strings | Green checkmark | Green checkmark | Green checkmark | Red checkmark |Green checkmark | | [Number](#number) | Integers or floating point numbers | Green checkmark | Green checkmark | Green checkmark | Red checkmark |Green checkmark | | [Date & Time](#date--time) | A date or date and time | Red checkmark | Red checkmark | Red checkmark | Red checkmark |Green checkmark | | [Boolean](#boolean) | `true`/`false` values | Green checkmark | Green checkmark | Green checkmark | Red checkmark |Green checkmark | 1,2The number of fields with this setting is [limited](/docs/assets/brickworks/limits). ### Complex types | Field name | Stored values | Primitive data type | Can be searchable1 | Can be unique2 | Accepts Jinjava | Nullable | | ------------------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | --- | | [Enumeration](#enumeration) | A list of allowed values, displayed as a dropdown list | Green checkmark | Red checkmark | Green checkmark | Red checkmark |Green checkmark | | [JSON code](#json-code) | Raw JSON content | Red checkmark | Red checkmark | Red checkmark | Red checkmark |Green checkmark | | [Array](#array) | Lists of values | Green checkmark | Green checkmark | Green checkmark | Red checkmark |Green checkmark | 1,2The number of fields with this setting is [limited](/docs/assets/brickworks/limits). ### Dynamic types | Field name | Stored values | Primitive data type | Can be searchable1 | Can be unique2 | Accepts Jinjava | Nullable | | ------------------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | --- | | [Jinjava code](#jinjava-code) | A string which contains Jinjava inserts. | Red checkmark | Red checkmark | Red checkmark | Green checkmark |Green checkmark | | [External Data](#external-data) | Pulls data from an external source when generating an object from a record | Red checkmark | Red checkmark | Red checkmark | Green checkmark |Green checkmark | 1,2The number of fields with this setting is [limited](/docs/assets/brickworks/limits). ### Relations | Field name | Stored values | Primitive data type | Can be searchable1 | Can be unique2 | Accepts Jinjava | Nullable | | ------------------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | --- | | [One to one](#one-to-one) | Reference to one record from another schema | Red checkmark | Red checkmark | Red checkmark | Red checkmark |Green checkmark | | [One to many](#one-to-many) | References to multiple records from another schema | Red checkmark | Red checkmark | Red checkmark | Red checkmark |Green checkmark | | [One to many filtered](#one-to-many-filtered) | References multiple fields from a schema if they meet a filter | | Red checkmark | Red checkmark | Red checkmark | Red checkmark |Green checkmark | 1,2The number of fields with this setting is [limited](/docs/assets/brickworks/limits). ### Synerise objects See [Synerise objects](/docs/assets/brickworks/synerise-objects) to learn to use: AI recommendations, aggregates, catalogs, expressions, metrics, and vouchers. ### Assets | Field name | Stored values | Primitive data type | Can be searchable1 | Can be unique2 | Accepts Jinjava | Nullable | | ------------------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | ----------------------------------------------------------------- | --- | | [File](#file) | Reference to a file (other than image) from [**Data Modeling Hub > Files**](/docs/assets/files-explorer) | Red checkmark | Red checkmark | Red checkmark | Red checkmark |Green checkmark | | [Image](#image) | Reference to an image from [**Data Modeling Hub > Files**](/docs/assets/files-explorer) | Red checkmark | Red checkmark | Red checkmark | Red checkmark |Green checkmark | 1,2The number of fields with this setting is [limited](/docs/assets/brickworks/limits). ## Array This field lets you add a list of multiple values within a single field. You can make the array untyped (default behavior) or configure it to accept only strings or only numbers. #### Field configuration in a schema 1. If you want to select the data type of an array, select it from the **Array type** dropdown. This setting can't be changed per record. #### Object generation example Arrays don't require extra parameters in the object generation request. The generated content is the value of the array:
[
    "string1",
    "string2"
]
## Boolean This field type accepts `true` or `false` as the value. In the record editor, it's shown as a checkbox. #### Object generation example Booleans don't require extra parameters in the object generation request. The generated content is the value of the field:
true
## Date & Time This field accepts a date or date and time, according to ISO 8601. In the record editor, you can select the value with a date picker:

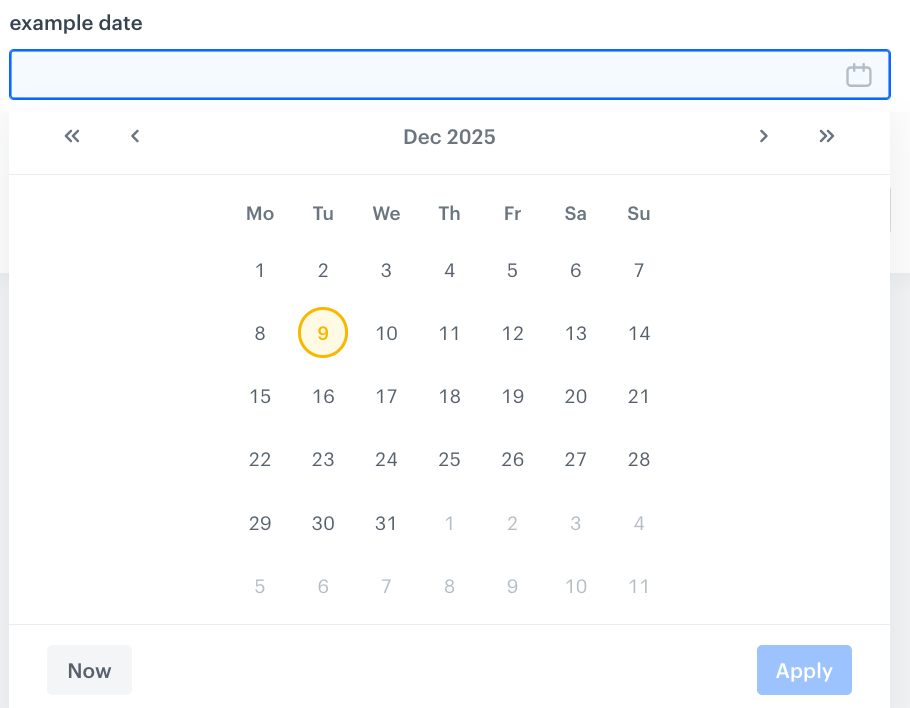

Date picker and a date/date-time value editor
Date picker and a date/date-time record editor
#### Object generation example Dates and times don't require extra parameters in the object generation request. The generated content is the value of the field.
"exampleDateAndTime": "2025-12-09T17:19:13+01:00",
"exampleDate": "2025-12-09"
## Enumeration This field type lets you add a fixed set of allowed values. In the record configuration list, it will appear as a dropdown. You can add human-readable labels to show in the dropdown. When a record is created or updated, the value of this field must match one of the allowed values.

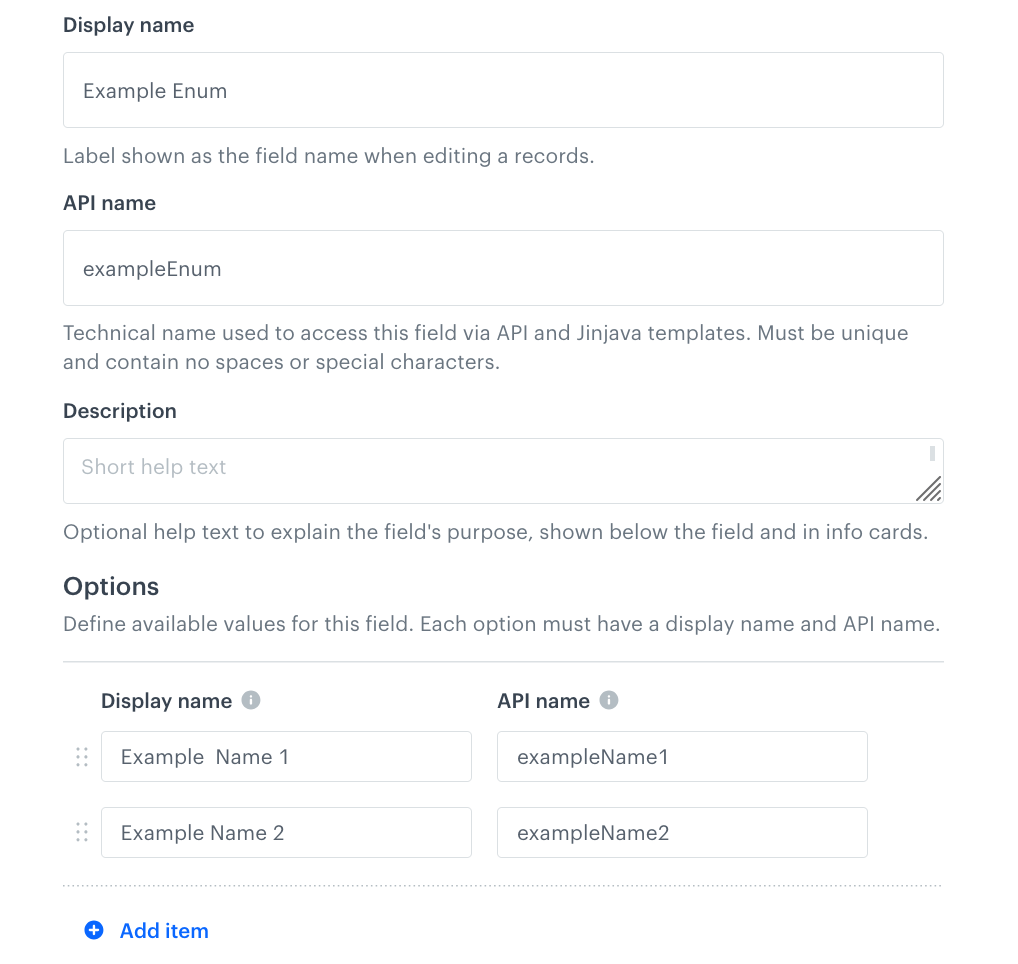

Enumeration in the schema editor
Enumeration in the schema editor

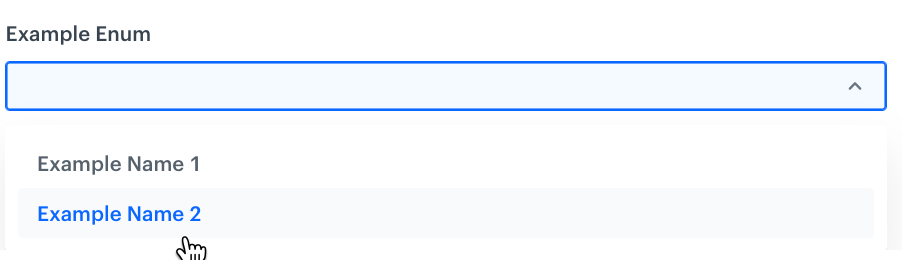

Enumeration in the record editor
Enumeration in the record editor
#### Field configuration in a schema 1. In the **Options** section: 1. Click **Add item**. 3. On the left side, enter the human-readable name shown in the record editor. 4. On the right side, enter the value that will be returned when an object is generated. This value is returned when you generate content from a record. This field doesn't support diacritic characters. #### Object generation example Enumerations don't require extra parameters in the object generation request. The generated content is the value of the field:
"exampleName2"
## External Data This field lets you add a dropdown with [external sources](/docs/assets/brickworks/creating-external-source) to a schema. When you generate an object from a record, a request is made to the external source and the data from the response is added to the generated content. The external source selected in the schema applies to all records and can't be changed per record. #### Field configuration in a schema From the **Select an external source** dropdown list, select an external source. #### Object generation example External sources don't require extra parameters in the object generation request. The generated content is the response body from the external source.
{
    "key1": "value1",
    "key2": "value2"
}
## File This field lets you add a dropdown with a selection of files available in [**Data Modeling Hub > Files**](/docs/assets/files-explorer), except for image files. To add a dropdown with image selection, see [Image](#image).

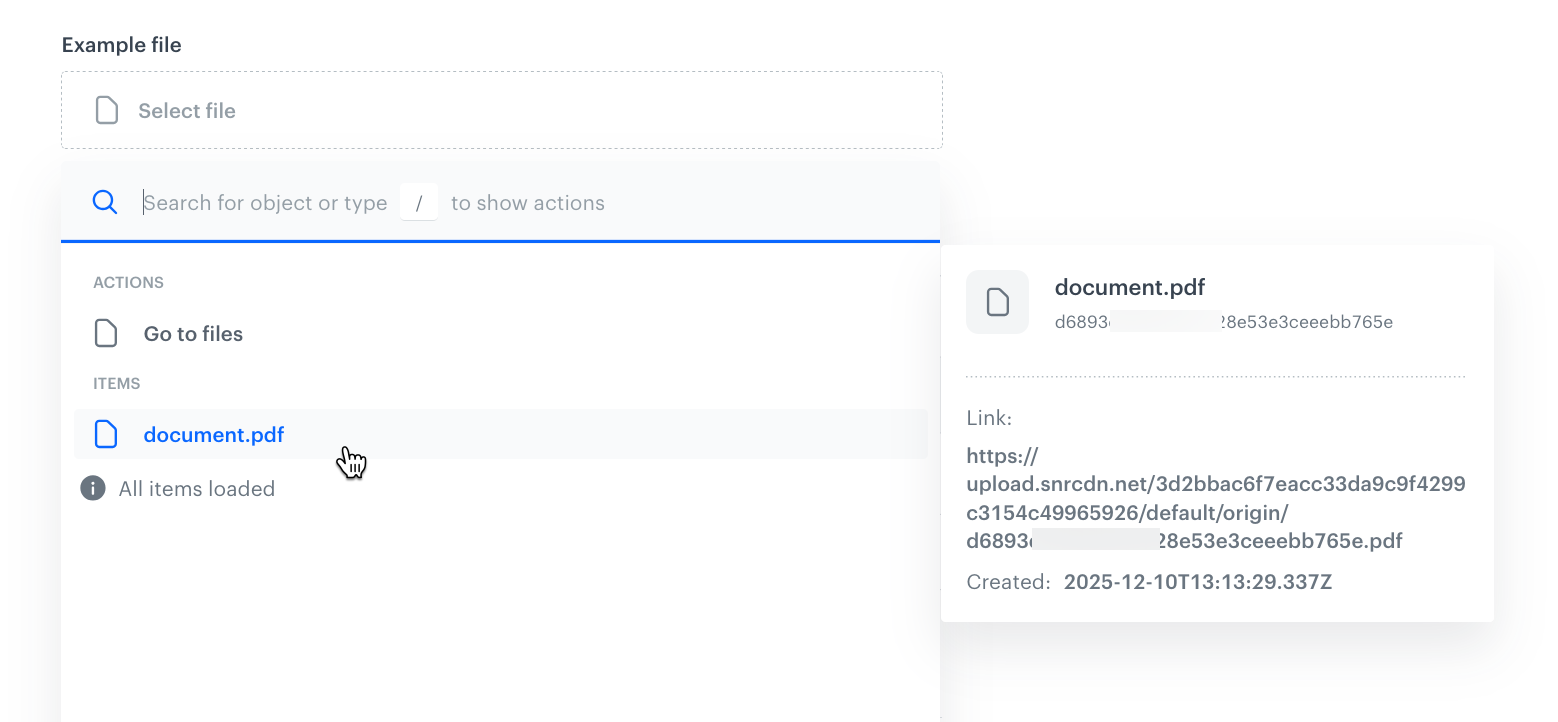

File selector in the record editor
File selector in the record editor
#### Object generation example Files don't require extra parameters in the object generation request. The generated content is an object with a link to the file.
{
        "origin": "https://upload.snrcdn.net/3d2bbac6f7eacc33da9c9f4299c3154c49965926/default/origin/1a87f667856cfoobarba514d6282be4e.pdf",
        "large": null,
        "thumb": null
    }
## Image This field lets you add a dropdown with a selection of images available in [**Data Modeling Hub > Files**](/docs/assets/files-explorer).

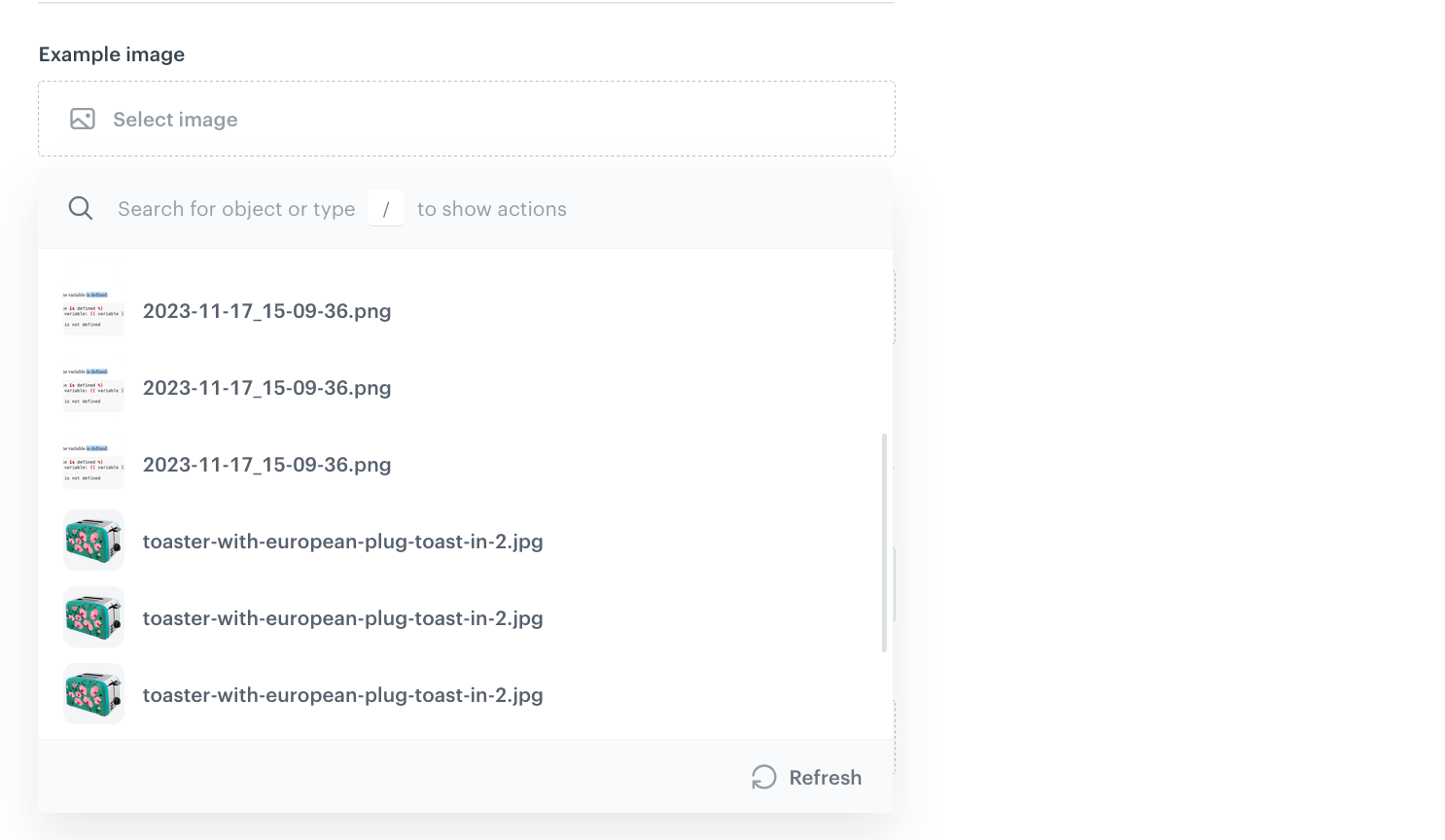

Image selector in the record editor
Image selector in the record editor
#### Object generation example Images don't require extra parameters in the object generation request. The generated content is an object with links to the image.
{
        "origin": "https://upload.snrcdn.net/3d2bbac6f7eacc33da9c9f4299c3154c49965926/default/origin/1a87f667856cfoobarba514d6282be4e.png",
        "large": "https://upload.snrcdn.net/3d2bbac6f7eacc33da9c9f4299c3154c49965926/default/medium/1a87f667856cfoobarba514d6282be4e.png",
        "thumb": "https://upload.snrcdn.net/3d2bbac6f7eacc33da9c9f4299c3154c49965926/default/thumb/1a87f667856cfoobarba514d6282be4e.png"
    }
## Jinjava code This field allows you to input and store [Jinjava template code](/developers/inserts) within the schema. Using this field, you can define reusable templates or dynamic text that will be rendered based on the context data at runtime.
When referencing profile attributes with Jinjava, you should check if they exist. See the below image for an example.
For more details, see [Insert usage](/developers/inserts/insert-usage#inserting-attributes-conditionally).

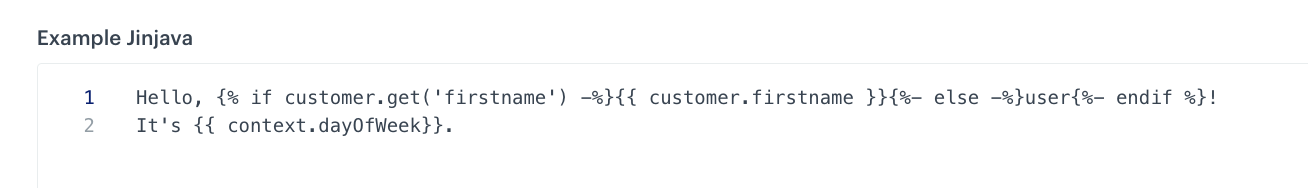

Jinjava in the record editor
Jinjava in the record editor
Additionally, in this field, you can use [inserts for retrieving values from other fields and providing context](/docs/assets/brickworks/brickworks-jinjava-inserts). #### Field configuration in a schema 1. In **Jinjava code**, enter the default code. 2. If you want to enforce casting the output of Jinjava code to a specific value type: 1. Enable the **Cast to** option. 3. From the **Choose type** dropdown list, select the data type to which the Jinjava code output will be cast to. 4. If you want to return `null` when casting fails, enable **Strict casting**. If strict casting is disabled, the raw value (string) is returned instead of an error. #### Object generation example In the following example, content is generated from the record shown in the screen above: - The name of the customer is pulled from the profile for whom the content was generated (see [Generating objects](/docs/assets/brickworks/generating-objects)). - The day of week is added in the `context` object of the generation request.
"context": {
      "dayOfWeek": "Monday"
  }
"Hello, Tom!\nIt's Monday.",
## JSON code This field allows you to input and store raw JSON data. The field includes validation to ensure the JSON is well-formed, enabling accurate storage and retrieval of structured data exactly as provided.

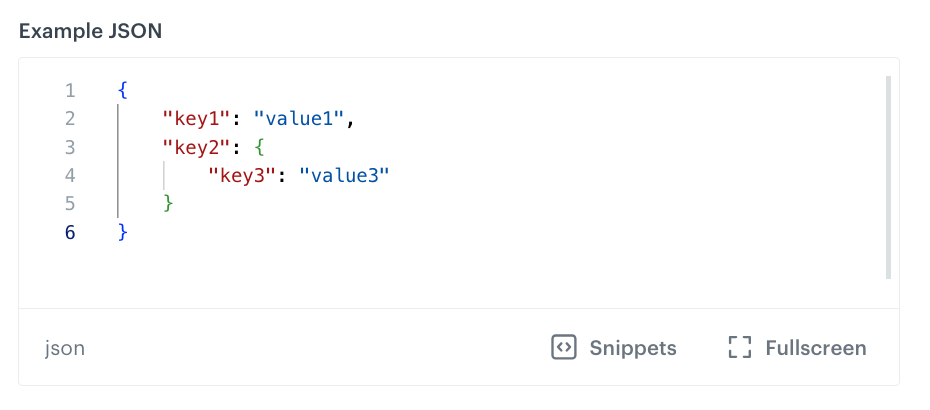

Raw JSON in the record editor
Raw JSON in the record editor
#### Field configuration in a schema Only [common properties](#common-field-properties). #### Object generation example JSON fields don't require extra parameters in the object generation request. The generated content is the value of the field:
{
    "key1": "value1",
    "key2": {
        "key3": "value3"
    }
}
## Number This field type lets you store numbers. You can choose to accept only integers or integers and floating-point numbers.

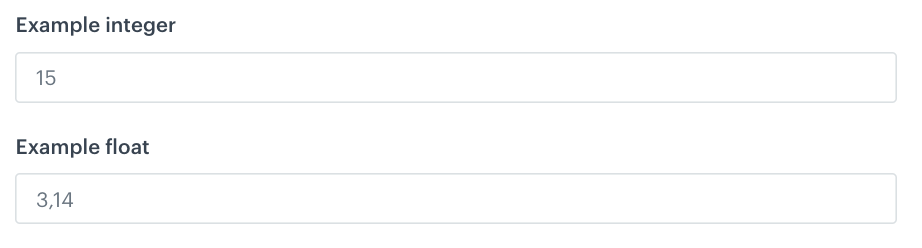

Two variants of the number field in the record editor
Two variants of the number field in the record editor
#### Field configuration in a schema 1. Select one of the following options: - **Integer** - To allow a whole number that can be positive, negative, or zero, but does not include any fractional or decimal part. - **Float** - To let users type real numbers, including decimal values. 4. To set limits on values for the field: 1. Select the **Limit value** checkbox. This limit isn't enforced when previewing a record. It only applies when trying to save or update the record. 2. Provide the minimum and maximum values the field can accept. #### Object generation example Numbers don't require extra parameters in the object generation request. The generated content is the value of the field:
"exampleInteger": 15,
"exampleFloat": 3.14
## One to one This is a relation field type that provides a dropdown populated with records from a selected schema. It allows a schema record to reference a single record from another schema. When a record is selected from the related schema, values from all fields of that referenced record are accessible.

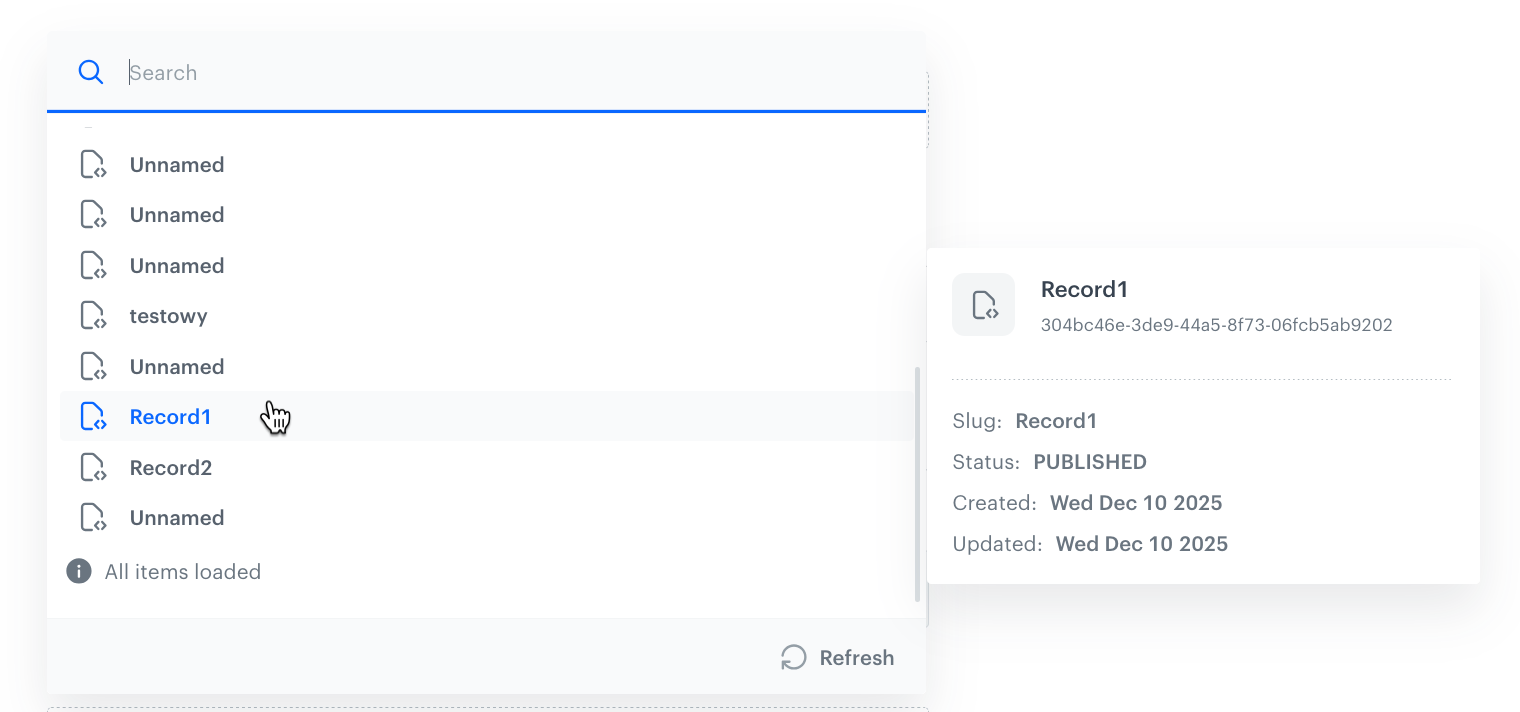

Selecting a record in a one-to-one reference
Selecting a record in a one-to-one reference
#### Field configuration in a schema 1. From the **Select schema** dropdown list, select a schema which stores the records that can be referenced. This can't be changed per record. #### Object generation example If the referenced records contain: - fields which use the `context.keyName` inserts, you can provide the context as described in the [Jinjava code](#jinjava-code) fields. - AI recommendation fields, you can provide the context as described in the [AI recommendation](/docs/assets/brickworks/synerise-objects#ai-recommendation) field. The generated content is the processed content of the referenced record. In the following example, the referenced record has two fields: `someNumber` and `someString`
{
    "someNumber": 35.7,
    "someString": "defaultvalue"
}
## One to many This is a relation field type that provides a dropdown populated with records from a selected schema. It allows a schema record to reference up to 10 records from another schema. When a record is selected from the related schema, values from all fields of that referenced record are accessible.

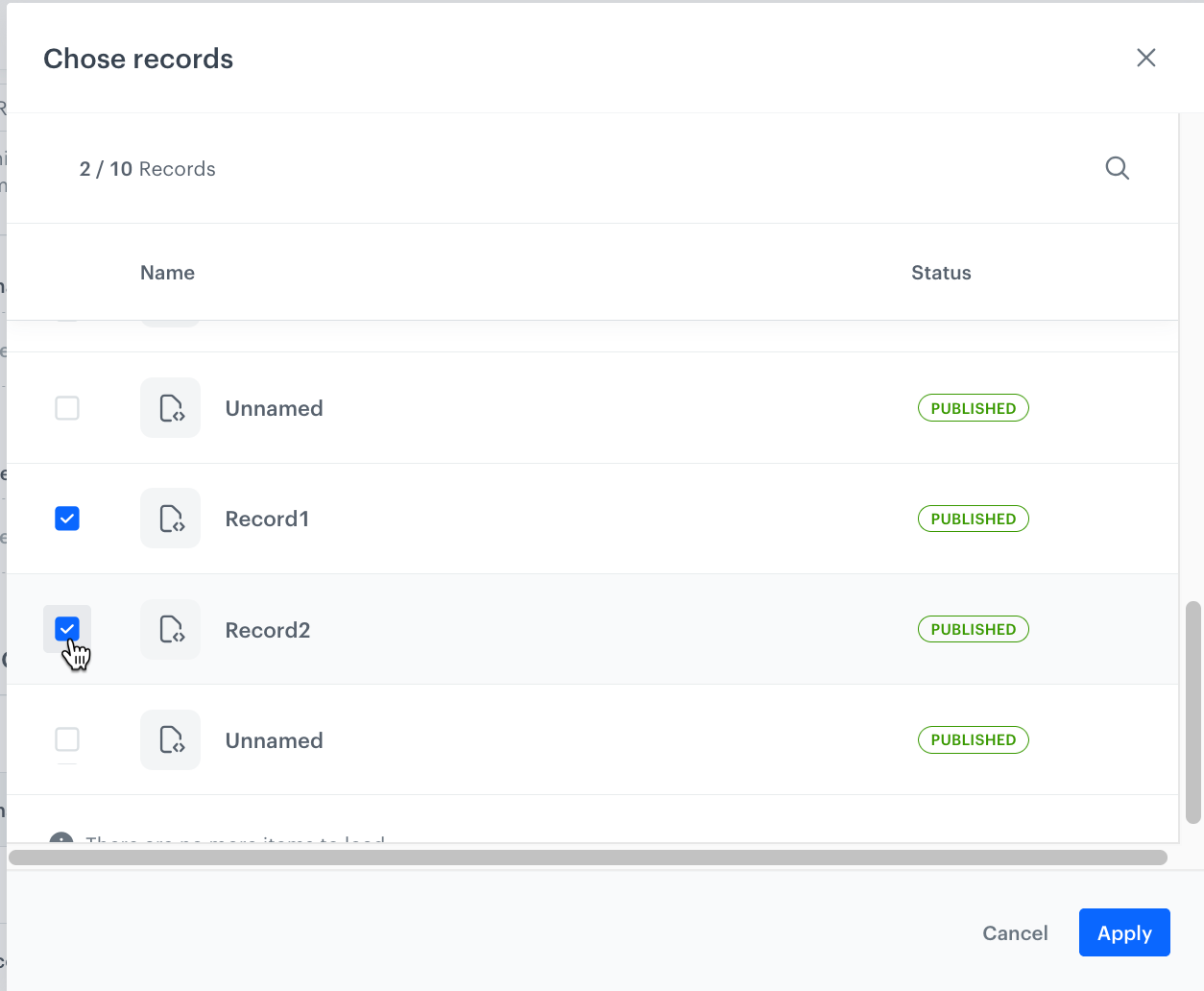

Selecting a record in a one-to-many reference
Selecting a record in a one-to-many reference
#### Field configuration in a schema 1. From the **Select schema** dropdown list, select a schema which stores the records that can be referenced. This can't be changed per record. 2. In **Limit**, set the maximum number of records that a record can link. This can't be changed per record. #### Object generation example If the referenced records contain: - fields which use the `context.keyName` inserts, you can provide the context as described in the [Jinjava code](#jinjava-code) fields. - AI recommendation fields, you can provide the context as described in the [AI recommendation](/docs/assets/brickworks/synerise-objects#ai-recommendation) field. The generated content is the processed content of the referenced records. In the following example, two single-field records are fetched.
[
    {
        "someString": "value1"
    },
    {
        "someString": "value2"
    }
]
## One to many filtered This relation field type provides a dropdown populated with schemas. You can select a schema and define filter conditions to return only the records that meet those conditions.
Filters can be applied only if the selected schema contains fields marked as **Unique values only** and/or has the **Enable search & filtering option** enabled. Otherwise, the filter will be inactive in the interface.

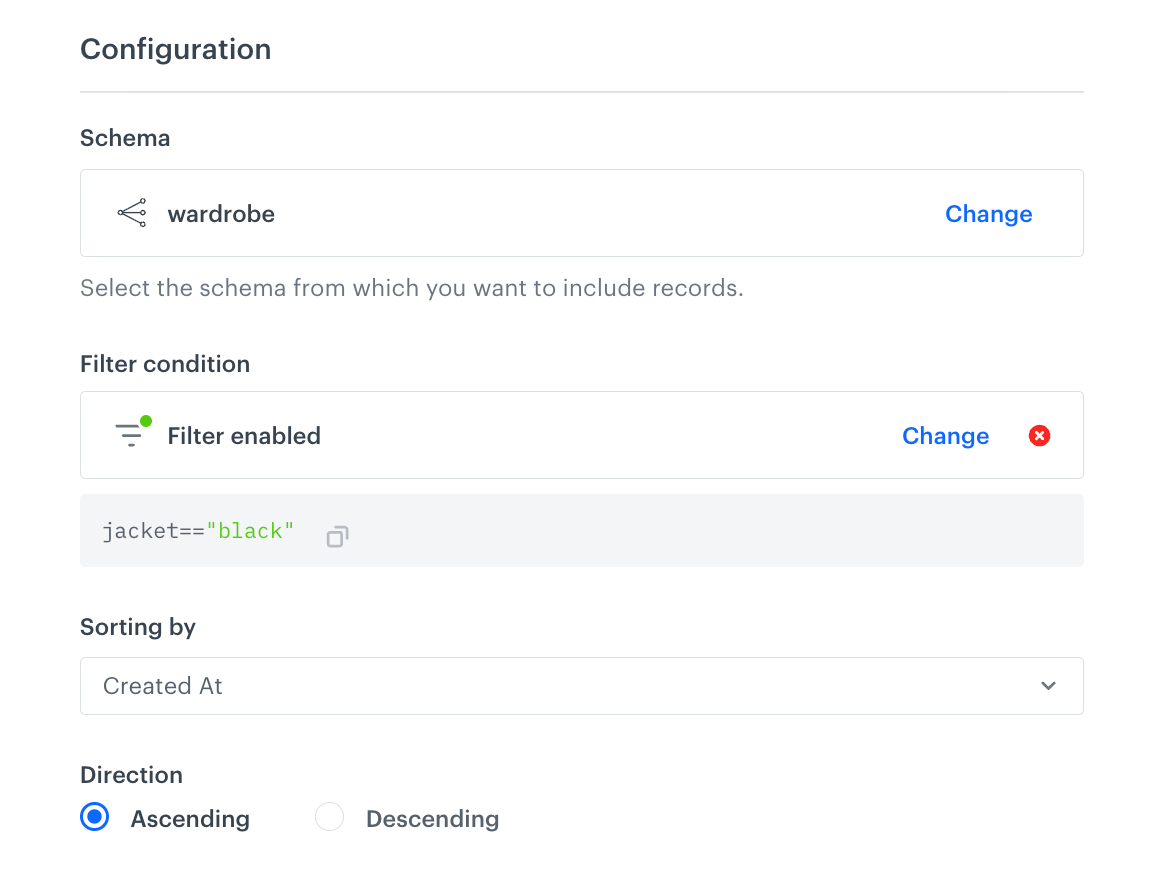

Selecting records in a one-to-many filtered reference
Selecting a record in a one-to-many filtered reference
#### Field configuration in a schema 1. From the **Select schema** dropdown list, select a schema which stores the records that can be referenced. This can't be changed per record. 2. To define filters, click **Define filter**. 1. From the **Select field** dropdown list, select the field from the schema you selected in the step before. 2. From the **Select operator** dropdown list, select the condition type to apply when filtering data. 3. Provide a value. 4. To add more conditions, click **Add condition**. 5. To change the dependency between the conditions (AND/OR), click **Or**. 6. Confirm by clicking **Apply**. 3. From the **Sorting by** dropdown list, select the attribute by which the filter results will be ordered. 4. In the **Direction** section, choose whether the results will be sorted in ascending or descending order. #### Object generation example
{
  "identifierValue": "6b7fed6d-da01-42f1-b98c-b2b31aed9ac3",
  "context": {},
  "values": {
    "relations": {
      "query": "jacket==\"black\"",
      "sortBy": "createdAt",
      "sortDirection": "asc"
    }
  }
}
{
    "__slug": "Schema with one to many filtered",
    "__recordVersion": 1,
    "__publishedAt": "2026-02-26T15:39:45.572337Z",
    "__updatedAt": "2026-02-26T15:39:45.564786Z",
    "__createdAt": "2026-02-26T15:39:45.564786Z",
    "relations": [
        {
            "shirt": "blue",
            "hoodie": "green",
            "jacket": "black",
            "trousers": "yellow"
        },
        {
            "shirt": "brown",
            "hoodie": "brown",
            "jacket": "black",
            "trousers": "brown"
        }
    ],
    "__schemaId": "a7e1ebc8-0e62-4f7c-b0db-3a1824efb1ac",
    "__id": "25104d4d-5d2b-4293-9758-c07d726c32a3",
    "__schemaVersion": 1
}
## String This field type lets you add a text field.
To add a string with Jinjava inserts, use the [Jinjava code field](#jinjava-code).
#### Field configuration in a schema 1. To set length limits for the field value, select the **Character limits** checkbox and specify the minimum and maximum number of characters allowed. 6. To enable regex validation for the field value, select **Validation pattern** and enter the expression. #### Object generation example Strings don't require extra parameters in the object generation request. The generated content is the value of the field:
"Lorem ipsum"
