[Google Could Pub/Sub](https://cloud.google.com/pubsub/docs/overview) is a messaging service for exchanging event data among applications and services. It lets you create systems of event producers and consumers, called **publishers** and **subscribers**. Publishers communicate with subscribers asynchronously by broadcasting events to a **topic** regardless of how or when these events are to be processed. Pub/Sub then delivers events to all the subscribers of that topic, and each subscriber has its own logic of reacting to the event. Integrating Synerise with Google Cloud Pub/Sub provides a seamless solution for exporting data from Synerise to Pub/Sub through dedicated nodes, including the valuable NPS survey data. With Google Cloud Pub/Sub integration, you can send selected data to this messaging service. This service makes data available to all subscribers, which can include any Google service or other third-party tools. In this use case, we will create a workflow that sends information with NPS survey data to Google Cloud Pub/Sub using a dedicated node in our Automation. ## Prerequisites --- - Implement a custom event for NPS survey data, which will be available in the customer profile. In this example, the event is called `nps.sent`. Implement custom events in your [mobile application](/developers/mobile-sdk/event-tracking#basic-custom-event) or website [Web](/developers/web/event-tracking#declarative-tracking-custom-events). You can learn more about NPS survey in [this use case](/use-cases/dynamic-nps). - Check [the requirements](/docs/automation/integration/google-cloud-pubsub/publish-message#prerequisites) you must meet to integrate Synerise with Google Cloud Pub/Sub. ## Create a workflow --- Create a workflow which sends information with NPS survey data to Google Cloud Pub/Sub. Every time the `nps.sent` event is generated, the data from the event is sent automatically to Pub/Sub. 1. Go to

**Automation Hub > Workflows > New workflow**. 2. Enter the name of the workflow. ### Define the Profile Event trigger node --- At this stage, we will configure conditions that launch the workflow. As a trigger, we will use the `nps.sent` event.

Click here to see example event and its parameters for an example customer

{ "time": "2023-02-15T15:24:49Z", "action": "nps.sent", "label": "", "client": { "id": 5092159999, "email": "e0097757-d1e2-44ac-ba3c-d97979a354c1@anonymous.invalid", "uuid": "e0097757-d1e2-44ac-ba3c-d97979a354c1" }, "params": { "eventCreateTime": "2023-02-15T15:25:08.861Z", "name": "John", "surname": "Doe", "location": "Warsaw", "age": "23", "feedback": "I am very satisfied with the service. The support team was responsive and helpful.", "product_id": "PROD123", "order_id": "ORD456", "nps_score": 9, "NPSsource": "mobile_app" } }

1. As the first node of the workflow, add **Profile Event**. In the configuration of the node: 1. Enter the name of the node. 2. From the **Choose event** dropdown menu, choose the `nps.sent` event. 2. Confirm by clicking **Apply** ### Configure the Publish Message node --- At this stage, we will configure the Google Cloud Pub/Sub **Publish Message** node.

We recommend publishing data in Google Cloud Pub/Sub using the CloudEvents standard, however, if you want to publish a message out of this standard or if you want to publish more than one message at once, proceed with [“Publish raw messages” node](/docs/automation/integration/google-cloud-pubsub/publish-raw-messages).

1. As the next node, add **Google Cloud Pub/Sub > Publish Message**. 2. Click **Select connection**. 3. From the dropdown list, select the connection. - If no connections are available or you want to create a new one, see [Create a connection](/docs/automation/integration/google-cloud-pubsub/publish-message#create-a-connection). - If you selected an existing connection, proceed to defining the integration settings. 4. In the configuration of the node: 1. In the **Project ID** field, enter the unique identifier of your project in Google Cloud Console. You can learn how to find the project ID [here](https://support.google.com/googleapi/answer/7014113). 2. In the **Topic ID** field, enter the unique identifier of the topic (a named resource that represents a feed of messages). Learn more about [creating and managing topics](https://cloud.google.com/pubsub/docs/create-topic). 3. In the **Attributes (optional)** field, enter a JSON key-value object with message attributes. This can be used to filter messages in the subscription. Learn more about [building the "attributes" object](https://cloud.google.com/pubsub/docs/reference/rest/v1/PubsubMessage). The Attributes object can contain up to 100 attributes. In this use case, we will add source of the NPS event as an attribute. This will allow subscribers in Pub/Sub to filter the proper messages to be consumed. The example of Attributes object contains [the Automation inserts](/developers/inserts/automation) that retrieve data from the event included in the **Profile Event** node.

Click here to see an example of Attributes object used in this use case

{ "NPSsource": "{{ event.params.NPSsource }}" }

4. In the **CloudEvent type** field, enter the type of data sent in the CloudEvent. Learn more about [CloudEvent types](https://github.com/cloudevents/spec/blob/v1.0.2/cloudevents/spec.md#type). 5. In the **Data (optional)** field, enter the event data. It will be sent to Pub/Sub as the `data` object in a [CloudEvent JSON Object](https://github.com/cloudevents/spec/blob/v1.0.2/cloudevents/formats/json-format.md). The CloudEvent object will be automatically encoded with base64 and sent as the `data` field in a [Pub/Sub Message](https://cloud.google.com/pubsub/docs/reference/rest/v1/PubsubMessage). In this use case, we will send values of `nps.sent` event parameters such as, among others, **name**, **surname** and **feedback**. The example of Data field contains [the Automation inserts](/developers/inserts/automation) that retrieve data from the event included in the **Profile Event** node.

Click here to see an example of the Data field used in this use case

{ "eventCreateTime": "{{ event.params.eventCreateTime }}", "name": "{{ event.params.name }}", "surname": "{{ event.params.surname }}", "location": "{{ event.params.location }}", "age": "{{ event.params.age }}", "feedback": "{{ event.params.feedback }}", "product_id": "{{ event.params['product_id'] }}", "order_id": "{{ event.params['order_id'] }}", "nps_score": "{{ event.params['nps_score'] }}" }

6. Confirm the settings by clicking **Apply**. ### Add the finishing node --- 1. Add the **End** node.

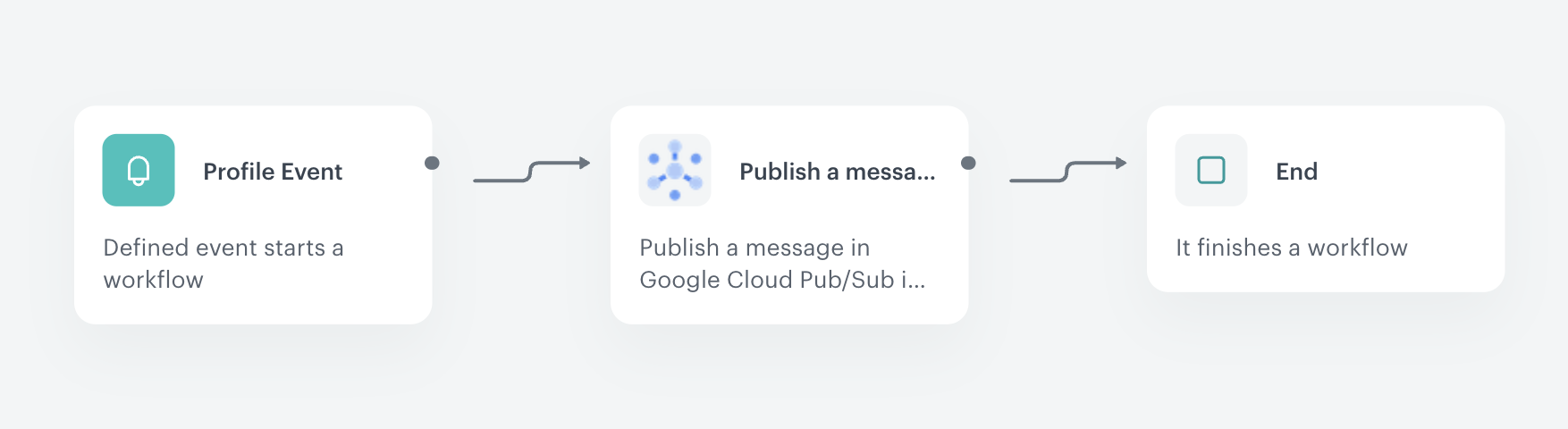

The view of the workflow configuration — The workflow configuration

2. In the upper right corner, click **Save & Run**. **Result**: Every time the `nps.sent` event is performed on the profil of customer, data from this event is streamed to Pub/Sub. After each such action, a response event (`pubSub.publishMessage`) is generated on the customer's profile.

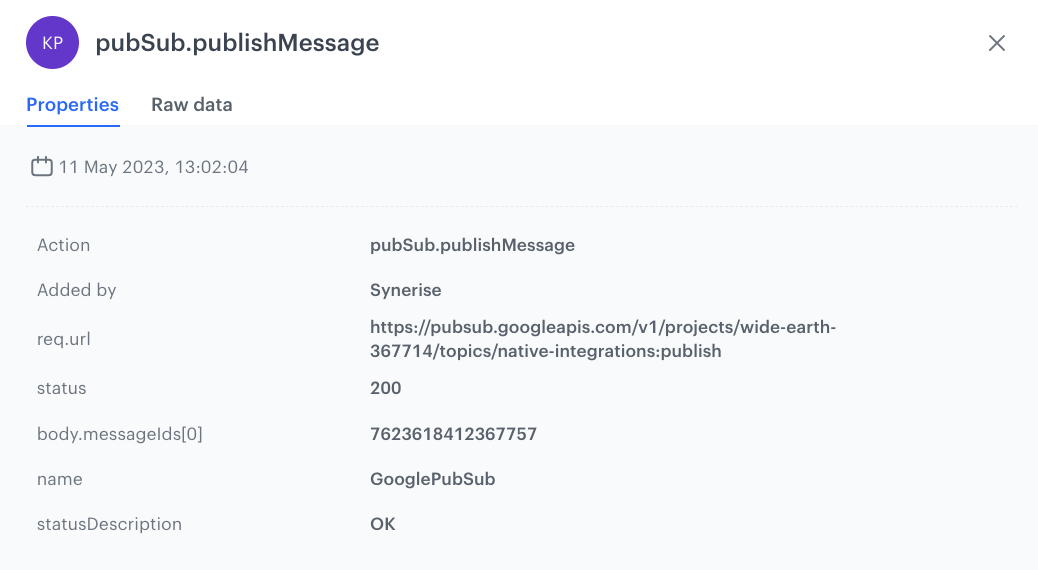

The response event example — Example of pubSub.publishMessage event, generated after sending data to Google Cloud Pub/Sub

## Check the use case set up on the Synerise Demo workspace --- You can check the [workflow configuration](https://app.synerise.com/automations/automation-diagram/1fbf41b2-7e9e-46e1-b450-8ceff9289695) directly in Synerise Demo workspace. If you’re our partner or client, you already have automatic access to the **Synerise Demo workspace (1590)**, where you can explore all the configured elements of this use case and copy them to your workspace. If you’re not a partner or client yet, we encourage you to fill out the contact [form](https://demo.synerise.com/request) to schedule a meeting with our representatives. They’ll be happy to show you how our demo works and discuss how you can apply this use case in your business. ## Read more --- - [Automation Hub](/docs/automation) - [Publish Message node](/docs/automation/integration/google-cloud-pubsub/publish-message) - [Jinjava inserts](/developers/inserts/automation)
