Return External Source error details to content with a Response Transformer

An invalid latitude causes the weather API in this example to return an error instead of temperature data. Capturing that response makes its error details available to a Brickworks response transformer.

In this use case, you will extend the weather example to return a temperature for valid coordinates and an error message for invalid coordinates. A content consumer can use the resulting error flag to distinguish these two outcomes.

Prerequisites

• Complete Prepare current temperature data for content with Brickworks, including the external request and context configuration.
• Keep the existing Open Meteo Connection external source available for reuse.
• Have permissions to create an additional schema and configure its External Data field and response transformer.

Process

In this use case, you will go through the following steps:

1. Create a separate schema for error handling that reuses the weather external source.
2. Enable error details on its External Data field.
3. Create the error-handling transformer with successful-response and error-response branches.
4. Preview successful and failed responses before activating the transformer.

Create a separate schema for error handling

Use a separate schema for this example so that its output can be tested independently from the original schema. Reuse the external source without changing its request configuration.

1. Go to Data Modeling Hub > Schemas > New schema.
2. Set Display name to Current Temperature (Error Handling)
3. Set the schema type to Singleton.
4. Add an External Data field with the display name Open Meteo Connection
5. Set the field's API name to openMeteoConnection, which the transformer below references.
6. Select the existing Open Meteo Connection external source.

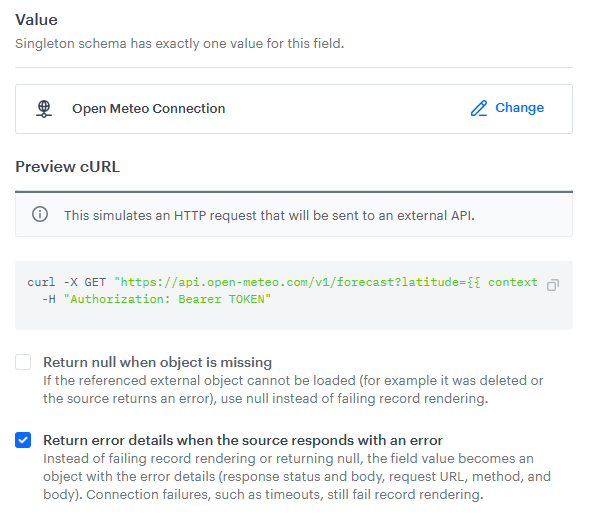

Enable error details on the External Data field

1. Open the configuration of openMeteoConnection in the new schema.
2. Enable Return error details when the source responds with an error.
3. Save the schema.

A successful call returns the weather payload with current and current_units, without a response.status key. The transformer below uses this difference to select a branch.

Create the error-handling transformer

For the invalid latitude example, the field returns an object that contains an HTTP status and the provider's error body. The relevant excerpt is:

{
  "response.status": 400,
  "response.body": {
    "reason": "Latitude must be in range of -90 to 90°. Given: 200.0.",
    "error": true
  }
}

The keys response.status and response.body contain literal dots. The transformer accesses them with bracket notation, such as weather["response.status"]

The transformer returns error: false with the temperature after a successful request. For the documented error response, it returns error: true, a placeholder temperature, and an error message.

1. In the schema editor, open Response transformers.
2. Select Edit > Add transformer.
3. Name the transformer Error Handling

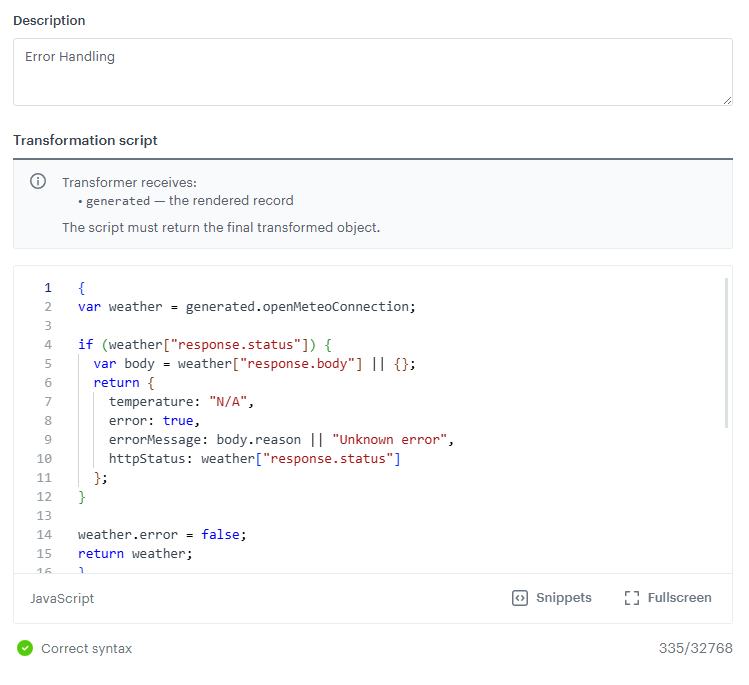

4. Enter the following script:


   {
     var weather = generated.openMeteoConnection;

     if (weather["response.status"]) {
       var body = weather["response.body"] || {};
       return {
         temperature: "N/A",
         error: true,
         errorMessage: body.reason || "Unknown error"
       };
     }

     return {
       temperature: weather.current.temperature_2m + weather.current_units.temperature_2m,
       error: false
     };
   }

5. Click Save or Save and close.

Preview successful and failed responses

1. Open the record preview:
   1. Set the context.
   2. Select Error Handling on the Transforming response tab.

Check valid coordinates

1. Use the record preview to check the results.
   1. Set the context in Additional parameters to lat to 50 and lng to 20.
   2. On the Transforming response tab, select the Error Handling transformer.
2. Generate the preview.
3. Check that error is false and that temperature combines the value and unit returned by the weather provider.

For the sample weather response, the preview returns:

{
  "temperature": "23.6°C",
  "error": false
}

The temperature can differ in a new request.

Check invalid coordinatesf

1. Use the record preview to check the results.
   1. Set the context in Additional parameters to lat to 200 and keep lng at 20
   2. On the Transforming response tab, select the Error Handling transformer.
2. Generate the preview.
3. Check that error is true, temperature is N/A, and errorMessage contains the provider's reason.

For the sample error response, the preview returns:

{
  "temperature": "N/A",
  "error": true,
  "errorMessage": "Latitude must be in range of -90 to 90°. Given: 200.0."
}

Once the preview results are confirmed, select Error Handling as the active transformer for this schema, click Apply, and save the schema when ready to use the output.

What's next

For another external source, define which provider responses represent each business outcome, then map them to the fields expected by the consumer. Adapt and test the condition and error-body handling for that source instead of reusing the weather-specific script unchanged.
