Integrating Synerise with Sylius

Sylius is a fast-growing open-source e-commerce platform, prized for its flexibility and booming adoption. With the official Synerise Integration plugin, you will bring Synerise AI capabilities to your commerce: predictions, recommendations, AI search and personalization. Additionally, you will gain real-time insights into customer behavior and keep data synchronized across customers, orders, and products, all within one connected ecosystem.

Plugin scope

• Website activity tracking - real-time monitoring of key user interactions such as page visits, session starts, and other on-site activities
• Purchase path tracking - real-time monitoring of transactions and cart events
• Customer identification - identifying customers on the website along with sending their attributes such as email, phone number, marketing consents, and address
• Product catalog synchronization - real-time synchronization of all updates in the product catalog
• Historical data integration - Import existing customer and transaction data into Synerise for a complete, unified view

Requirements

1. You must have user permissions to create an API key in Synerise.
2. You must have access to admin panel in the Sylius platform.
3. Symfony Messenger should be up and running on your store (optional, but highly recommended);
   Messenger is required for historical data synchronization. It can also be used to queue up events happening live, which will improve overall performance.

Configuration in Synerise

Add a workspace API key

1. In Synerise, go to Settings > API Keys > Add API key.

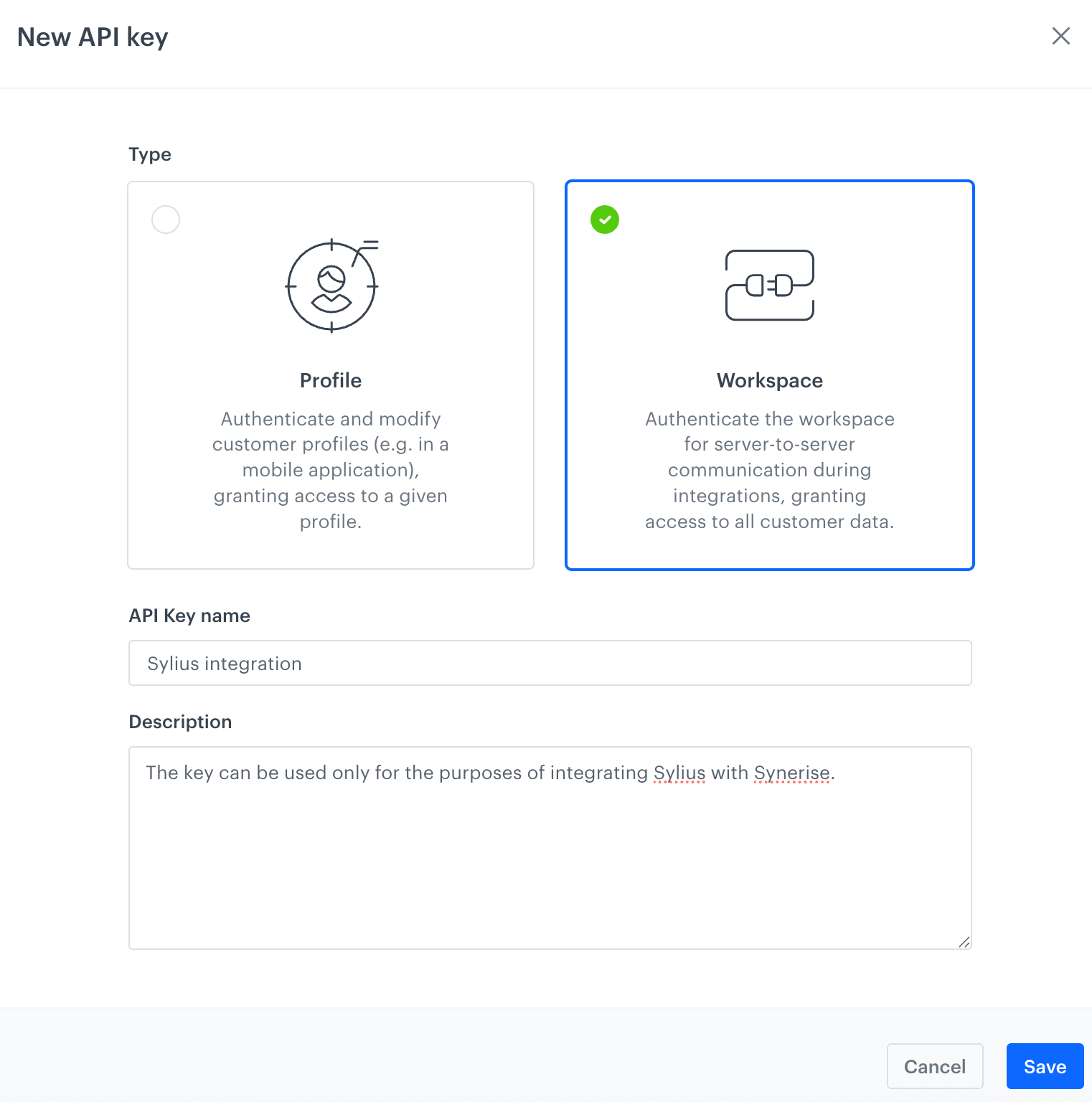

2. On the pop-up:

   1. Select Workspace.
   2. In API key name, enter the name of the API key (it will be visible on the list of API keys).
   3. Optionally, in Description, enter the description of the key (it will be visible on the list of API keys).



3. Confirm by clicking Save.

4. Find the key on the top of API key list and click it.

5. On the Permissions section, click Show.

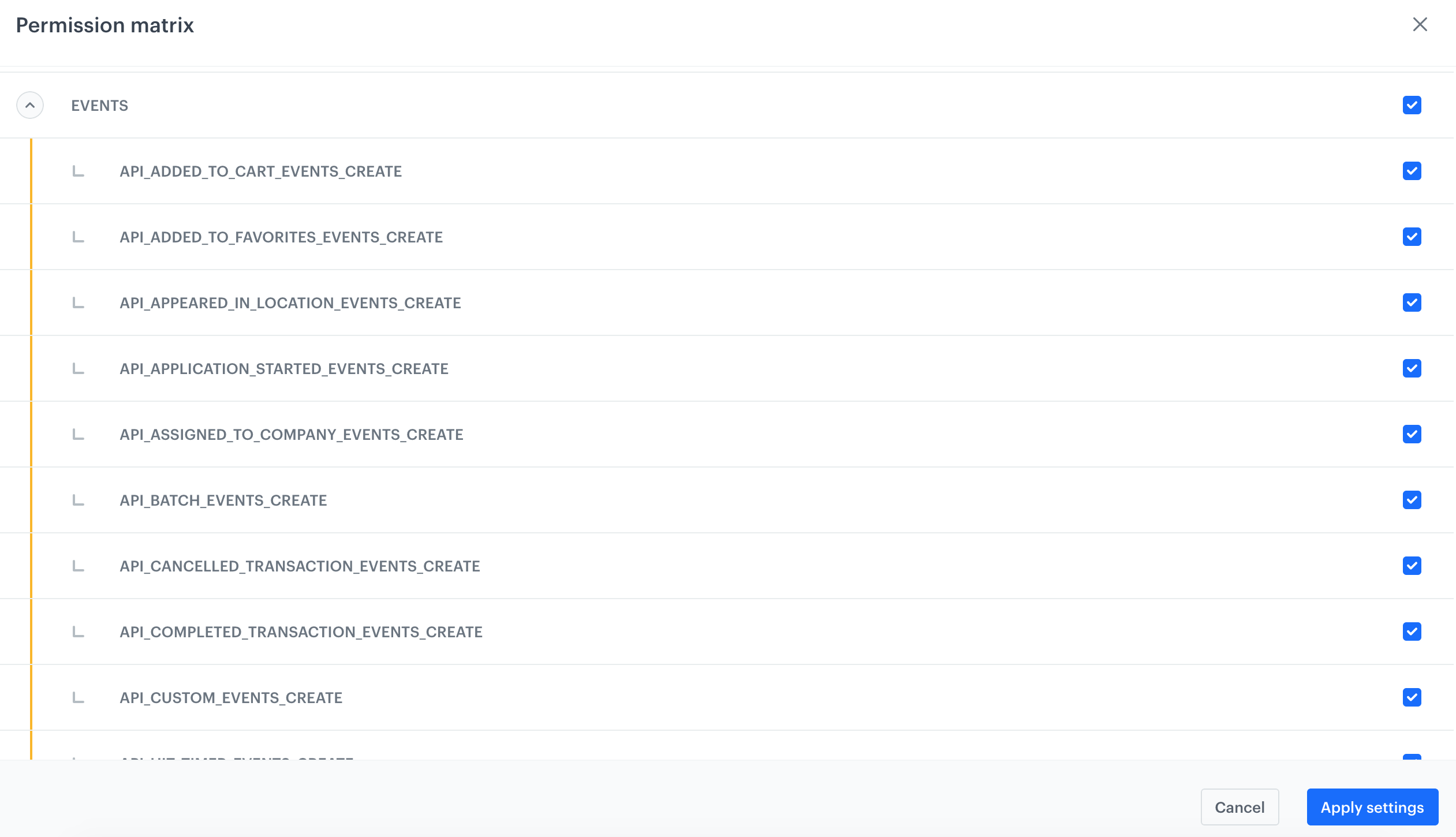

6. On the pop-up, select the following permissions:

   • CATALOG:
     • CATALOGS_CATALOG_CREATE
     • CATALOGS_CATALOG_READ
     • CATALOGS_ITEM_BATCH_CATALOG_CREATE
   • CLIENT:
     • API_BATCH_CLIENT_CREATE
     • API_CLIENT_CREATE
   • EVENTS:
     • API_ADDED_TO_CART_EVENTS_CREATE
     • API_ADDED_TO_FAVORITES_EVENTS_CREATE
     • API_CUSTOM_EVENTS_CREATE
     • API_LOGGED_IN_EVENTS_CREATE
     • API_LOGGED_OUT_EVENTS_CREATE
     • API_REGISTERED_EVENTS_CREATE
     • API_REMOVED_FROM_CART_EVENTS_CREATE
   • SEARCH:
     • ITEMS_SEARCH_CONFIG_SEARCH_CREATE,
     • ITEMS_SEARCH_CONFIG_SEARCH_UPDATE,
     • ITEMS_SEARCH_CONFIG_SEARCH_READ,
     • ITEMS_SEARCH_SEARCH_READ
   • TRACKER
     • TRACKER_CREATE
   • TRANSACTION
     • API_BATCH_TRANSACTION_CREATE
     • API_TRANSACTION_CREATE



7. Confirm by clicking Apply settings.

8. On the General section, click Show.

9. Copy the API key and paste it to the notepad.



Enable basic workspace authentication (optional)

By default, the authorization process involves obtaining a token with a limited lifespan through a request. This means that if a token is leaked, it can only be used until it expires, limiting potential misuse. We recommend using Bearer authentication, as it provides this secure, time-limited access.

Alternatively, you can use basic workspace authentication, which requires only the workspace GUID and API key. This method can be faster since it doesn’t require additional token acquisition requests. However, if the credentials are leaked, they allow unlimited use until the keys are revoked. In both methods, you have the option to delete or revoke keys, instantly preventing further access. While basic authentication offers simplicity and easy revocation, it may carry a higher security risk compared to token-based Bearer authentication.

The full instruction is available in “Basic workspace authentication”

Configuration in Sylius

Log in to your administration panel in Sylius and perform the steps described below:

Download and install the Synerise plugin

1. Download the plugin from the Sylius store.
2. Install the plugin according to the documentation.

Connect Synerise to Sylius

In this part of the process, you need to connect a Synerise workspace to Sylius by using the API key of a Synerise workspace. This will allow you to exchange the data between Synerise and Sylius.

1. On the left panel, click Synerise > Workspace connection.

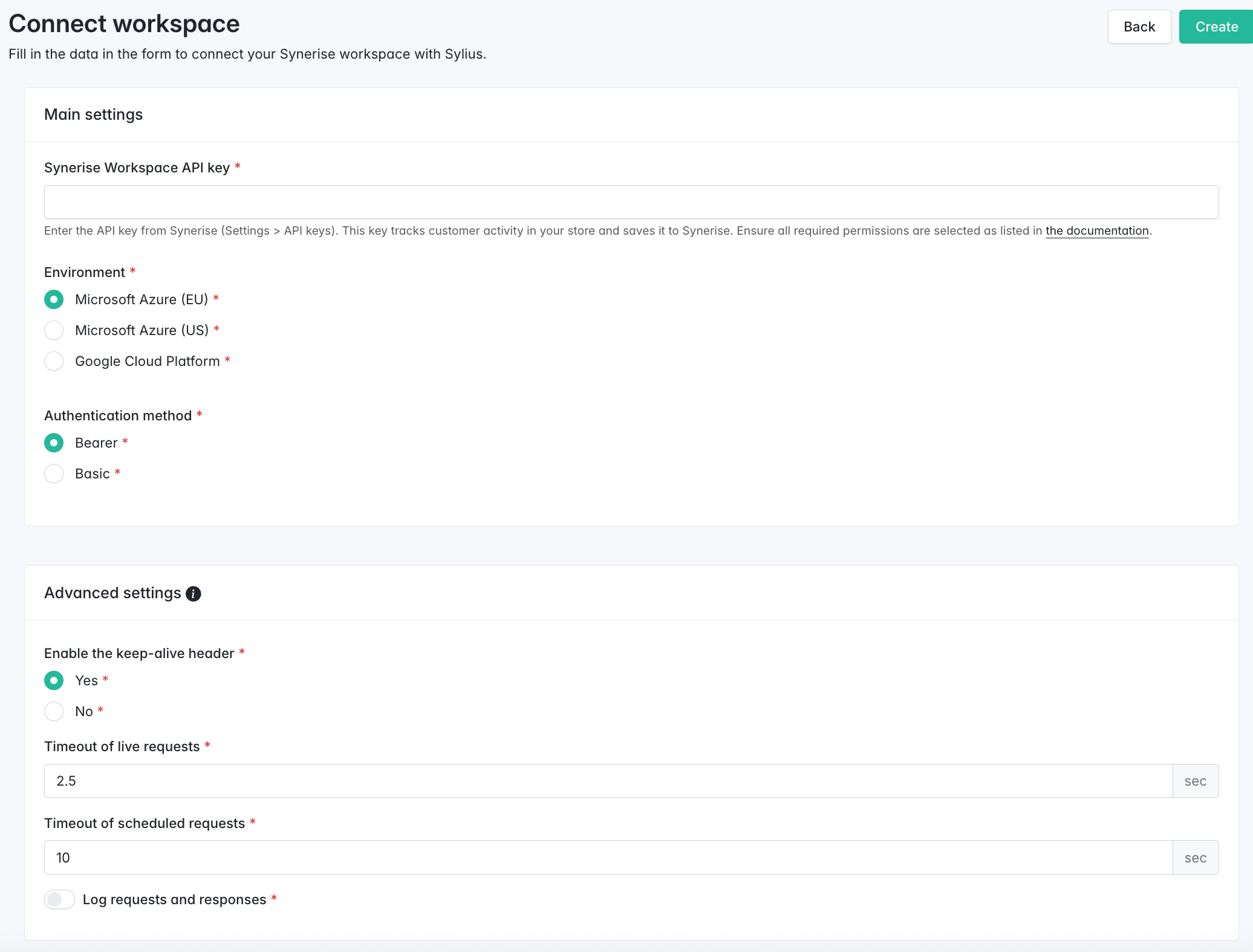

2. In the upper-right corner, click Connect workspace.
   Result:



3. In Synerise Workspace API key provide the API key you created in Add a workspace API key.
4. In Environment, select the API host URL. You can recognize your host by how you access the portal:
   • If your Synerise portal URL starts with https://app.synerise.com/, select Microsoft Azure.
   • If your Synerise portal URL starts with https://app.azu.synerise.com/, select Microsoft Azure US.
   • If your Synerise portal URL starts with https://app.geb.synerise.com/, select Google Cloud Platform.
5. In Authentication method, select the authentication method:
   • if you want to include an access token in the authorization header of an HTTP request, select Bearer;
   • if you want to use workspace GUID and API key for authentication (basic workspace authentication), select Basic and provide the Synerise workspace GUID.
     You can get the workspace GUID in the Synerise platform in Settings > API keys. Go to the details of the workspace API key you used in this integration and copy the GUID from the Basic access authentication section.
6. In the Advanced settings section:
   • If you want to keep subsequent requests and responses to be sent and received over the same connection, set Enable keep-alive header to Yes.
   • In Timeout of live requests, define the time after which the real-time requests will be terminated.
   • In Timeout of scheduled requests, define the time after which the scheduled requests will be terminated.
   • If you want to enable logging requests and responses, enable Log requests and responses.
     Logs will be available on the server in the ver/log catalog.

Assign Synerise workspace to Sylius channels

In this part of the process, you will enable tracking customer activity in your store with a tracking code that is automatically added when you assign workspaces to the websites, as detailed in this section.

You can connect multiple Synerise workspaces to Sylius (which you have done in the Workspace Connection tab). However, in the Channel configuration section, the setup works like this: Each channel can be assigned with a single workspace, but the same workspace can be assigned to multiple channels. In other words, there is a many-to-one relationship—multiple channels can connect to one workspace, but each channel can connect to only one workspace.

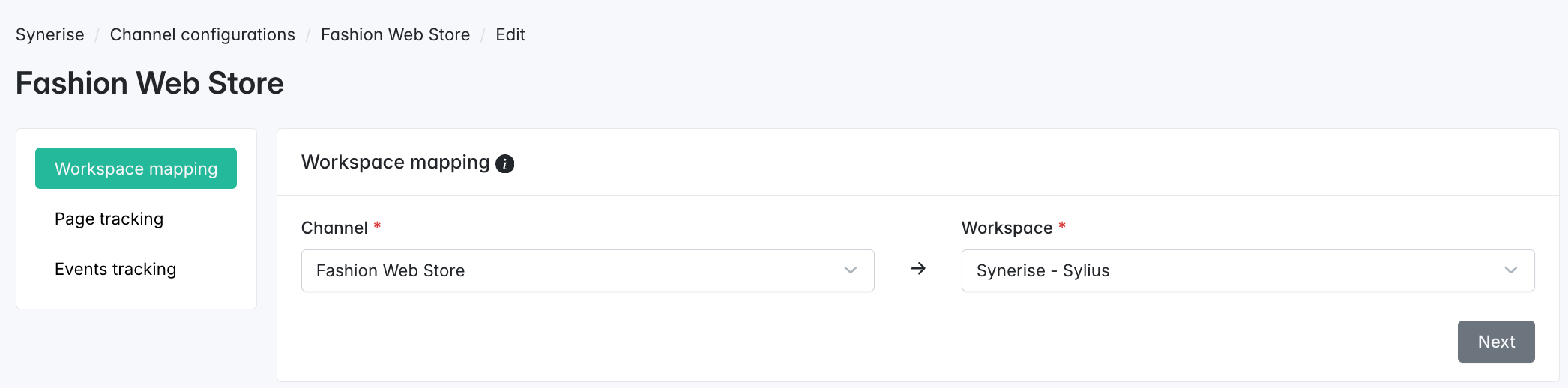

1. On the left panel, click Synerise > Channel configurations.
   Result:



2. From the Channel dropdown, select the Sylius channel configuration.
3. From the Workspace dropdown, select the Synerise workspace with which you want to connect the Sylius channel configuration.
4. Click Next.

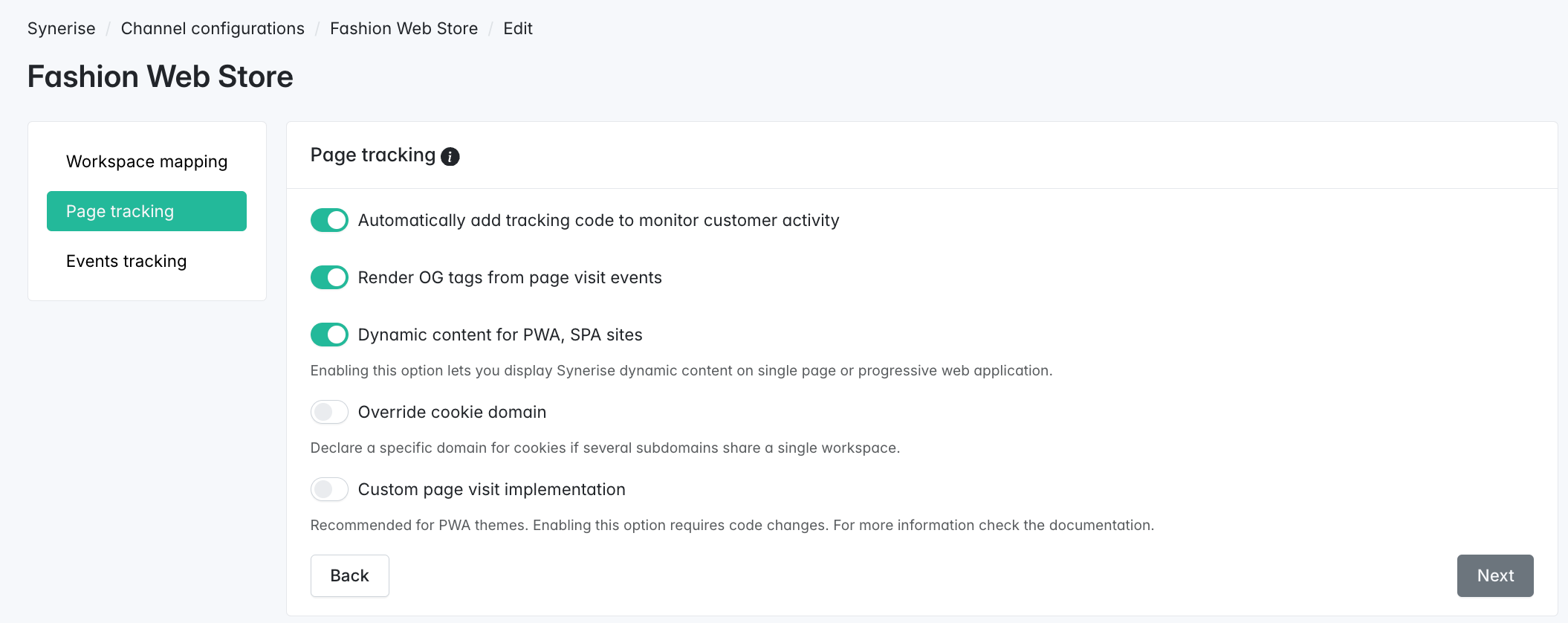

Page tracking

In this part of the process, you will initiate page tracking to collect and send data about customers activity on your website to Synerise. The tracking code is can be automatically when you assign channel to a workspace.

1. Leave the Automatically add tracking code to monitor customer activity option enabled.
   The tracking code will be created in the Synerise platform and it will be automatically added to your website.
2. If you want to add OG tags to the product pages and to page.visit events generated in Synerise, enable Add OG tags to the product pages and page.visit events.

   Click here to expand the list of OG tags sent which will be in page.visit events

   • og:type - specification of the object,
   • product:retailer_part_no - the SKU of the item,
   • og:image - image URL,
   • og:title - product name,
   • og:url - product URL,
   • product:category - product category,
   • product:price:amount - the current price of the item,
   • product:sale_price:amount - the price at which the product is currently being offered for sale,
   • product:original_price:amount - the original price (before discounts, if any);

3. If you want to display dynamic content on your e-shop, enable Dynamic content for PWA, SPA sites.
   PWA stands for Progressive Webpage Application and SPA stands for Single Page Application.
4. If you use several subdomains, they generate cookies with their own domain. To declare a specific domain instead, enable Override cookie domain and enter the domain.
   The domain must conform with channel’s URL settings. Subdomains are also accepted.
5. By default, page visits are tracked automatically. If you want to implement custom tracking of page visits, enable Custom page visit implementation and make necessary changes in your source code.
   Instructions for the code changes are available in “Tracking code in Single Page Applications”; this configuration will also work for progressive webpage application (PWA).
6. Click Next.

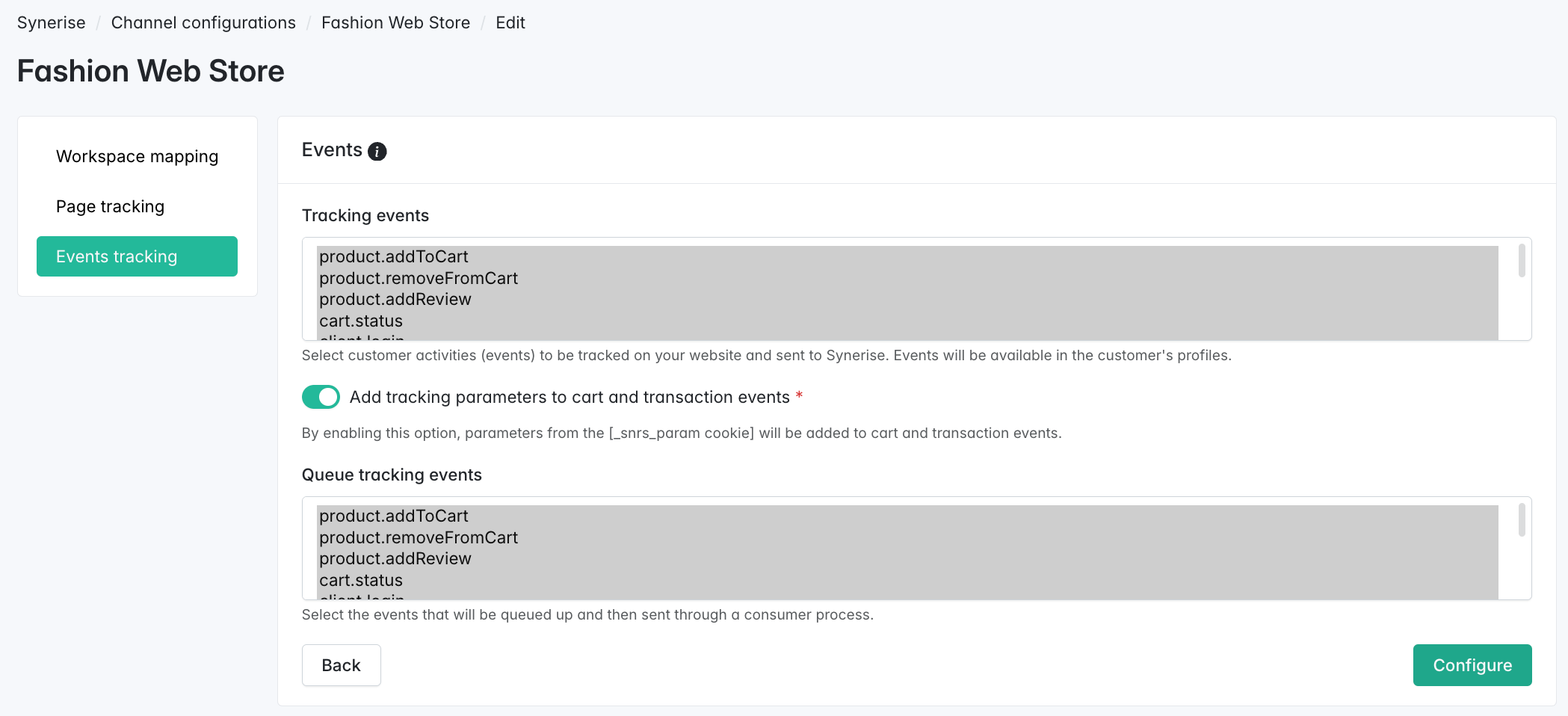

Event tracking

In this part of the process, select the activities which will be tracked and generated as events in the Synerise platform on the activity list of the customers who performed a given activity. Events generation within the plugin doesn’t require additional actions.

1. By default, in the Tracking events section, all events are selected. If you want to narrow down the scope of events, de-select the events you don’t need.
   As a result, an event will be generated on the activity list of a profile that belongs to the customer who performed an action.

2. To add parameters from the _snrs_param cookie to cart and transaction events, enable Add tracking parameters to cart and transaction events.

3. In Queue tracking events, select the events which will be queued up and sent through a consumer process. Deselected events will be sent in real-time.

4. To complete the whole configuration, click Configure.
   Result: Live synchronization of customer activities has been enabled. This means that the events you selected in this part of the process are sent to Synerise.


   Note: When a customer agrees to receive marketing communication, their profile is either created if it does not yet exist or updated if it already exists.

Synchronization (on demand)

Up to this point, a real-time synchronization was triggered through event tracking. In this part of the process, you can initiate synchronization on demand of the following information:

• items,
• orders,
• customer data, including marketing agreements;

By doing this, you can provide Synerise with transaction data, customer information acquired to until now, and integrate your item feed into Synerise.

To synchronize data from Sylius to Synerise on demand, you need to set up a synchronization for a specific channel. This initial step entails choosing a Sylius channel, selecting the relevant product attributes, and determining the format for sending these attributes during synchronization. Subsequently, you can proceed to execute a synchronization job by defining the data scope and specifying the time range from which information will be extracted and transmitted.

Create synchronization for a channel

1. On the left panel, click Synerise > Synchronization.

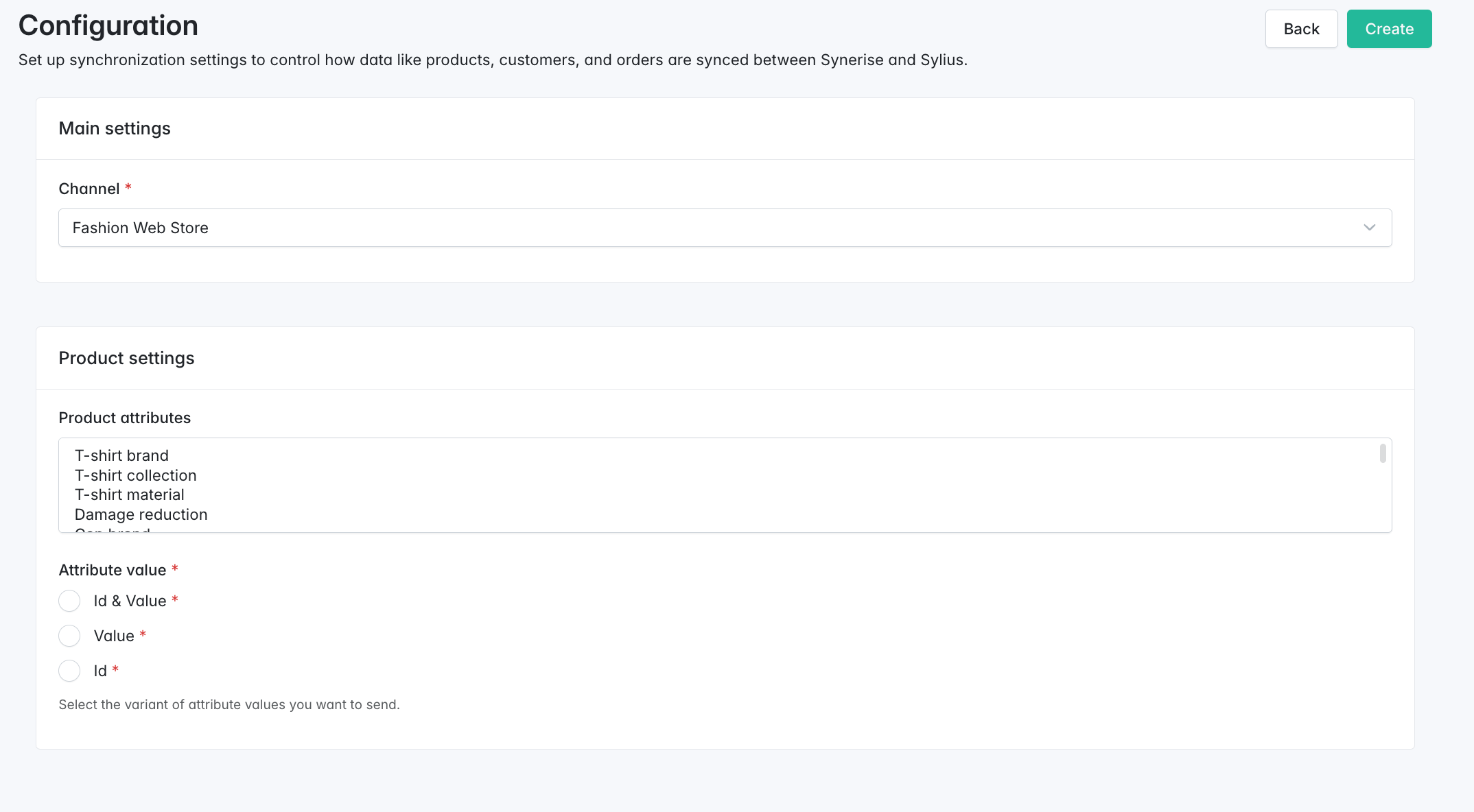

2. In the upper right corner, click Configure.
   Result:



3. From the Channel dropdown list, select the channel from which the data will be used for synchronization.
4. In Product settings, from the Product attributes list, select the item attributes which will be updated in Synerise.
5. In Attribute value, select the format of item attributes:
   • If you want to send the IDs of item attributes (for example, 1234) and their values (for example, blue), select Id & Value, as a result, the object will look as follows:


     {'id':1234, 'value': 'blue'}


     We recommend sending both as it provides more data.
   • If you want to send only the values of attributes (for example, blue), select Value;
   • If you want to send only the IDs (for example, 1234), select Id;

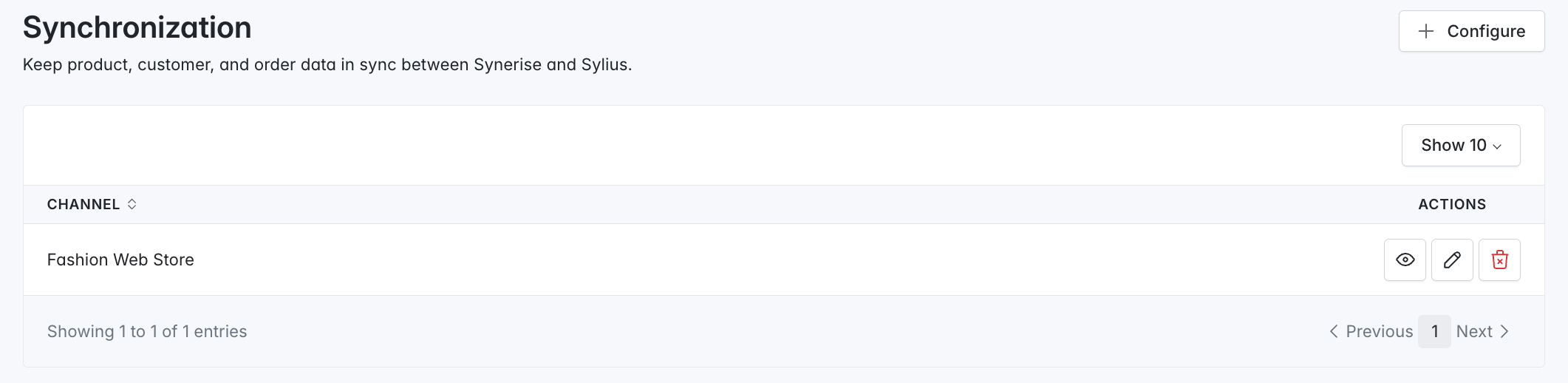

6. Confirm the configuration by clicking Create in the upper-right corner.
   Result:



Start synchronization job

In this part of the process, you can launch a synchronization job, select the scope of data, and choose time from which data will be synchronized.

1. On the left panel, click Synerise > Synchronization.
2. Next to the synchronization of the Sylius channel, click the eye icon.
3. In the upper-right corner, click New synchronization.
4. In Sync settings, select the data scope:
   • Customers - if you want to synchronize customer information.
     As a result, profile.updated events will be generated on the activity list on a profile card in Synerise.
   • Products - if you want to synchronize product information.
     As a result, the item feed in the Synerise catalog will be updated. The catalog containing the feed in Synerise follows this naming convention: channel-{id}, for example, channel-123.
   • Orders - if you want to synchronize transactional data.
     As a result, transaction.charge events will be generated on the activity list on a profile card in Synerise.
5. In Since and Until, define the period from which the data will be synchronized.
6. Start the synchronization by clicking Create in the upper-right corner.
   The synchronization will be executed in background by the messenger consumers. Please make sure your messenger:cosnume process is being run.
