"Profile Filter" node

The Profile Filter node lets you control which profiles (such as customers) continue through your workflow based on specific criteria. It can only be used in profile-oriented workflows, where the workflow’s actor is an individual profile. This node is essential for refining the flow of profiles in your workflow, enabling precise targeting and branching based on customer attributes or behaviors.

Within the node’s settings, you can select an existing segmentation or create a new one. If the existing segmentation includes multiple segments, you can split the workflow into separate paths for each of them (segment-based branching), allowing for better personalization.

Additionally, the node always provides a default output path labeled If not matched. This path is for profiles that do not meet any of the segmentation conditions, ensuring they can follow a specific alternative flow or be handled differently.

Segment-based branching

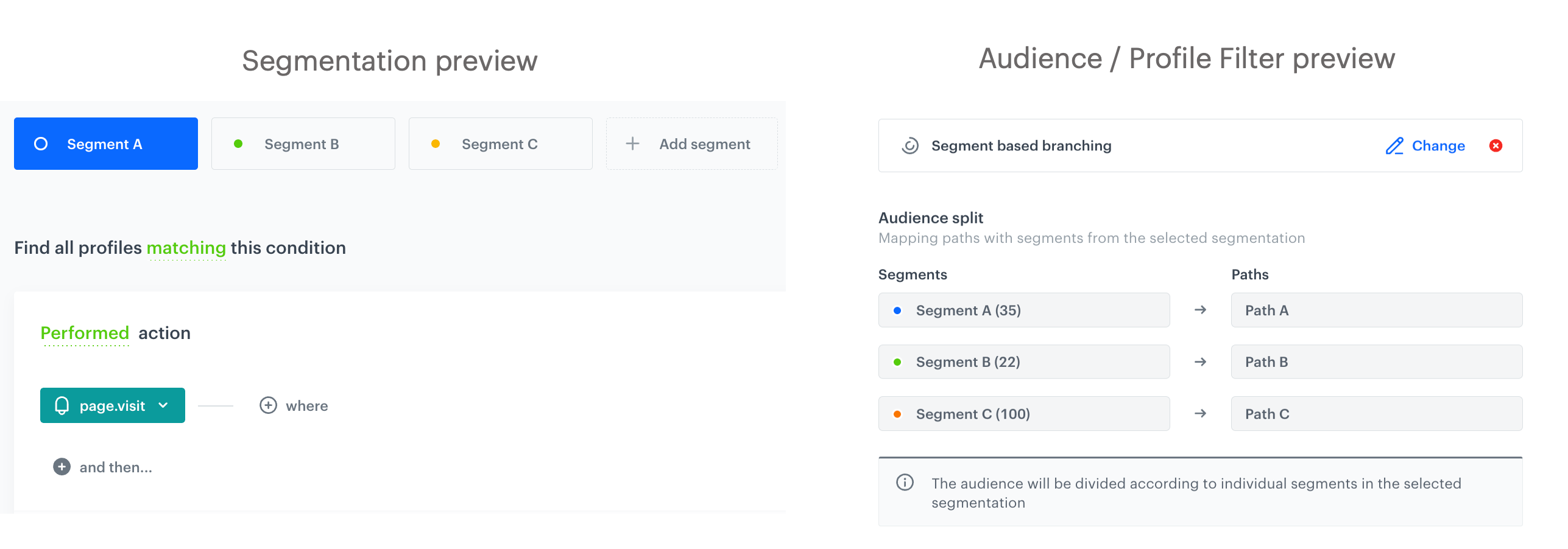

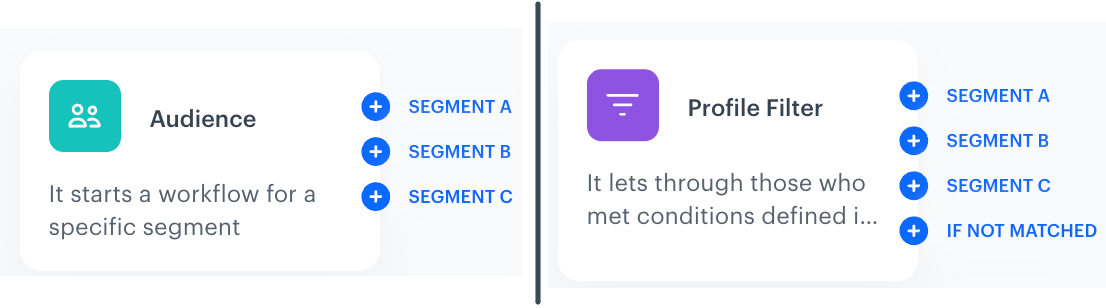

Segment-based branching lets you create a separate workflow path (named after its corresponding segment) for each segment in a segmentation selected in the node. This option in the settings of the node (available in the Split audience tab), lets you:

• Manage multiple audience segments within a single workflow, reducing the need to create and maintain separate workflows for each segment.
• Easily branch campaigns based on distinct audience segments, allowing personalized messaging and actions for each group.
• Quickly adapt to segmentation changes without rebuilding workflows, supporting dynamic campaign strategies as audiences evolve.
• Build a process for prioritizing communication for the selected segmentation, based on the order (priority) of segments in the segmentation.

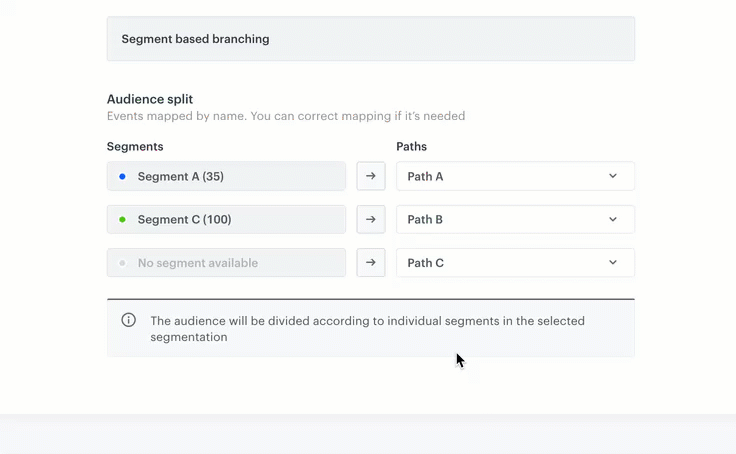

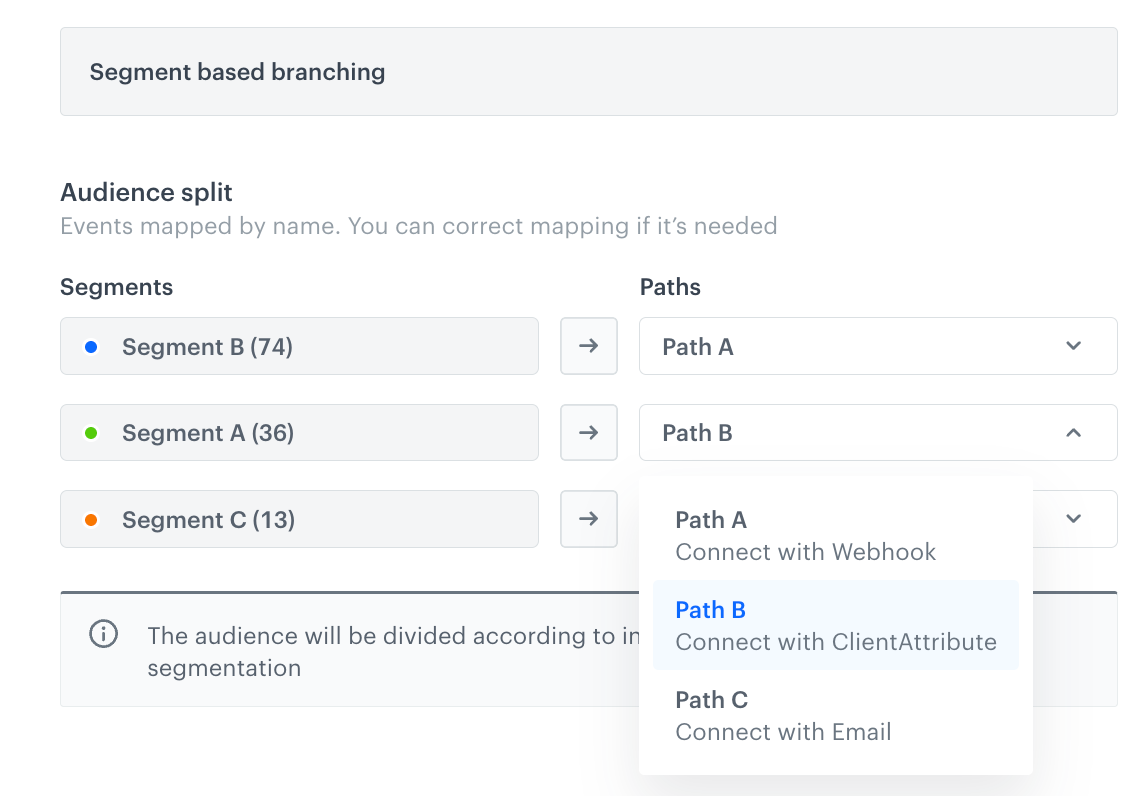

Assuming the segmentation used in the node contains three segments: A, B, and C, the table shows how changes to this segmentation will affect the connections for Split audience mode when a workflow is active:

Limits

• When configuring segment-based branching, there is a limit of 10 output connections available. Although the segmentation can include more than 10 segments, the system will display only the first 10 connections.
• If the segmentation contains more segments than outgoing connections, then profiles matching the segments that do not have an outgoing connection will be expelled from the workflow and the automation.clientPathAborted event will be generated on their activity list.
• You can’t use segmentations for which the multi-match option is enabled.

Requirements

• You must implement the tracking code into your website.
• You must have customers in your database.

Configuration

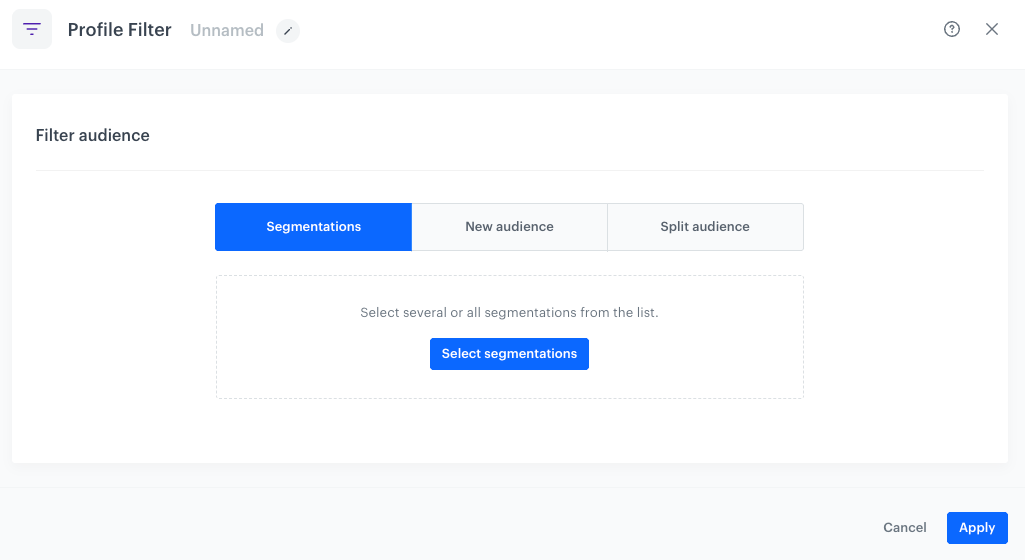

1. To define the node settings, click the node.
   Result: A pop-up opens.



2. Select one of the following tabs:

   • Segmentations - Choose from the list of existing segmentations. You can select any number of segmentations. When you use this option, the node outputs two paths:
     • If matched - for profiles that match the conditions of at least one selected segmentation.
     • If not matched - for profiles that don’t match any of the selected segmentations.
   • New audience - Define a new group of profiles by specifying filter conditions.
     • All filter fields that require manual input accept snippets or inserts. These fields are marked with the icon and it lets you select a snippet.
   • Split audience - When a segmentation includes multitple segments, you can use this option to create separate paths in your workflow for each segment for more granular targeting and actions.

3. Confirm your choice by clicking the Apply button.
   Result:

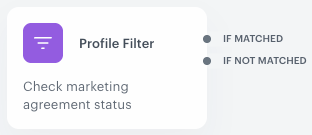

   - if you selected the Segmentations or New audience tabs:

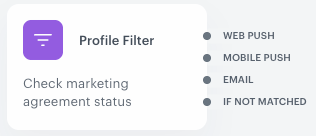

   - if you selected the Split audience tab:




Example of use

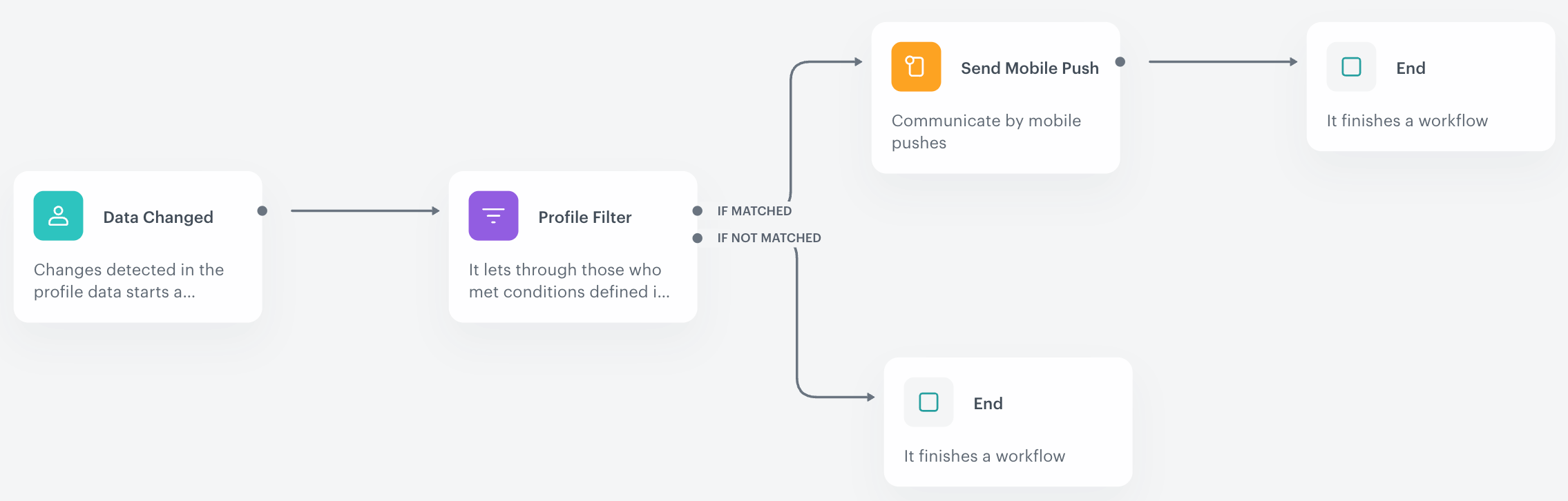

Regular outputs from the node

The purpose of this workflow is to send a mobile push notification with a welcome message informing about access to special discount.

1. In the Data Changed trigger node, select the event that indicates a change in the subscription status.
2. In the Profile Filter condition node, choose a segmentation that groups customers who have recently upgraded their subscription plan.
3. To the If matched branch, add the Send Mobile Push node.
   Customers who belong to this segmentation will receive a mobile push notification introducing the new feature.
4. Add End nodes after the Send Mobile Push node and to the If not matched branch.
   Result:



Segment branching output from the node

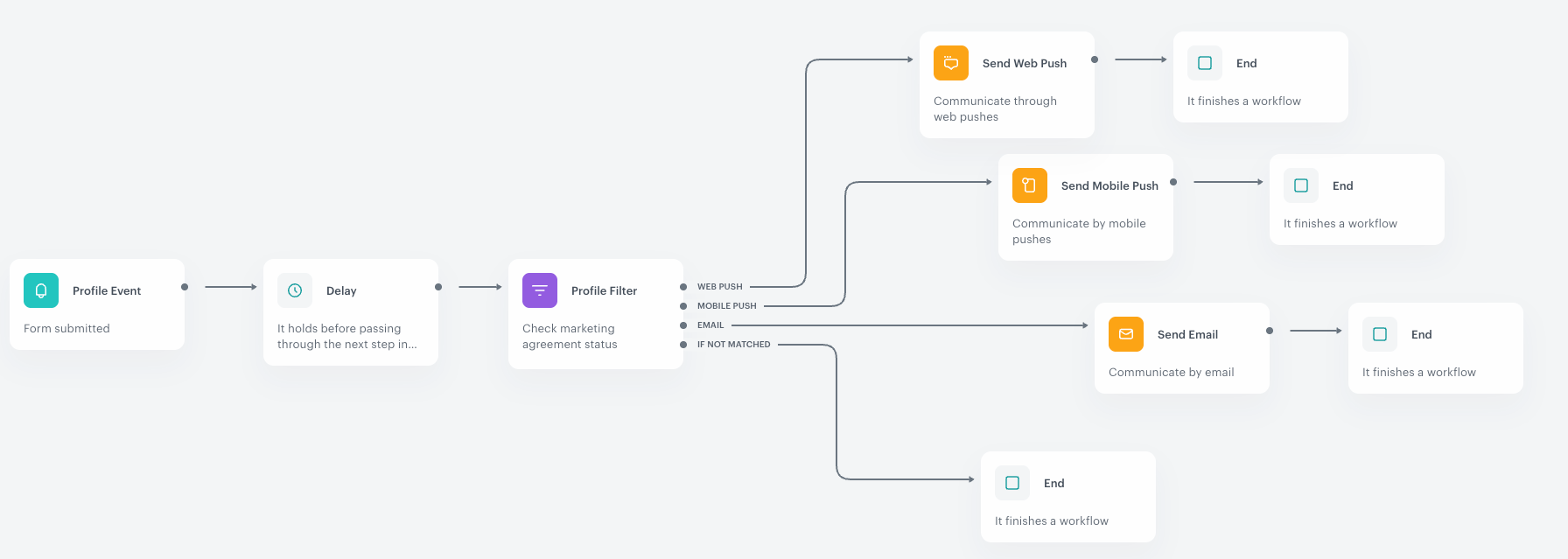

In this example, a workflow is triggered when a customer submits a form. The workflow then checks the customer’s marketing agreements to determine which communication channel can be used to contact them. Based on this, a confirmation message about the form submission is sent through the appropriate channel. If the customer does not have any active marketing agreements, the workflow will end for that individual.

The segmentation used in this example includes three segments: web push, mobile push, and email. Although a customer may have consented to multiple channels, this segmentation has the multi-match option disabled. This means that even if a customer qualifies for more than one segment, they will be assigned to only one segment based on the defined conditions.

1. In the Profile Event node, select the event that corresponds to the form submission.
2. In the Profile Filter node, go to the Split audience tab and choose a segmentation that identifies which communication channel the customer has agreed to receive messages through.
3. For each segment branch, add a node that sends the message through the respective communication channel.
4. Add an End node after each message-sending node, as well as after the If not matched output branch.
   Result:
