Cloning workflows to other workspaces

Before cloning workflows to other workspaces, we recommend reading the Introduction to cloning article.

The scope of this article presents how to clone the following objects to a target workspace:

• workflow with node settings - this option allows you to clone a workflow together with the configuration in each node (Complete workflow)
• the structure of the workflow - this option allows you to clone only a structure of the workflow, without cloning the settings of nodes (Nodes structure)

Cloned elements

The following elements of the workflow are cloned (copied to the target workspace) automatically:

• Workflow
• Synerise objects included in the message content sent through a workflow, such as: AI Recommendation (together with the objects it contains such as expressions, aggregates, metrics), metrics, aggregates, expressions, segmentations
• Metrics from the Metric Filter node
• Message templates - The templates will be available in the Default folder.

There are some elements which are cloned but you will not see them listed in the cloning summary:

• Workflow capping settings
• the Ignore capping setting
• Settings of the native external integrations, for example Send File to Amazon S3 Bucket, Add Profiles to Custom Audience, Upload Data to Spreadsheet, and so on;
• Settings of the ABx Test node
• Settings of the Generate Event nodes - event name, event description and the body of the event (including Jinjava inserts)
• Settings of the Outgoing Integration node (Custom webhook version)
• From message-sending nodes:
  • Email attachments - The attachment is cloned and available in a target workspace in the Data Management > Files.
  • Files used in a message template from Data Management > Files - The file is cloned and available in a target workspace in the Data Management > Files.
  • Lifespan settings (web push notifications)
  • UTM & URL parameters - The message is cloned with the parameters added in the UTM & URL parameters section.
  • Additional parameters - The message is cloned with the parameters added in the Additional parameters section.
  • The context of the builder in which a message template has been created - This means that if you will edit the message template in the target workspace, you will do it in the editor the original template was created in.

Not cloned elements

There are some objects in the workflow which you cannot clone. In such case, you must point (map) its equivalent in the target workspace. For example, if a cloned workflow is triggered by display of a dynamic content (dc.show), you must point the name of the event on the target workspace which defines the same action.

If the equivalent does not exist on the target workspace yet, you can either create it while mapping or you must go to the target workspace and create it there.

Prerequisites

To clone workflows to other workspaces:

• You must be assigned a user role (Settings > Roles) that has all possible permissions in the source and target workspaces.
• If the workflow contains the Optimize Time node, you must enable Time optimizer in the source workspace.
• In the target workspace, if you want to clone a workflow with the node configuration and the workflow contains the nodes that send messages (email, SMS, web push, mobile push):
  • You must configure an email/SMS account. Other communication types don’t require sender account.
  • If the email/SMS/web push/ mobile push template contains AI recommendation:
    • In the target workspace, enable models for the types of recommendations included in the message template and configure the recommendation attributes while configuring the AI engine.
    • Make sure the item attribute names (feed catalog columns) and value types in the item feeds in the source and target workspaces are the same.
  • If you refer in a message to:
    • a catalog - make sure you have a catalog with corresponding data and structure (column names and types of values) in the target workspace.
      • If the catalog on the source and target workspaces have the same structure (column names and value types), you don’t have to do anything after cloning is complete.
      • If the catalog on the source and target workspaces have different structure (column names and value types), after the cloning is complete, the cloned message/template includes references to the columns and values from the catalog from the source workspace. You must replace them with the target workspace’s catalog.
    • a voucher pool - make sure you have a voucher pool in the target workspace.
    • promotions - make sure you have a corresponding promotion in the target workspace.
• In the target workspace, if you want to clone a workflow with the node configuration and the workflow contains the Integration nodes (such as Send file to Amazon S3 Bucket), you must configure authorization connections. This can be done in the settings of the node.

Select a workflow to clone

1. Go to Automation > Workflows .
2. On the list of workflows, find the workflow you want to clone.
3. From the context menu, select Clone to workspace.
   • If you want to only clone a node structure, on the pop-up, select Node structure.
   • If you want to clone workflow with the node settings, select Complete workflow.
     Result: The Choose destination pop-up appears.
4. On the pop-up, select up to 5 workspaces to which you want to clone your message.



5. Confirm your choice by clicking Next.
   Result: You are directed to the mapping wizard.

Cloning

The procedure of cloning a workflow takes place in the mapping wizard and involves:

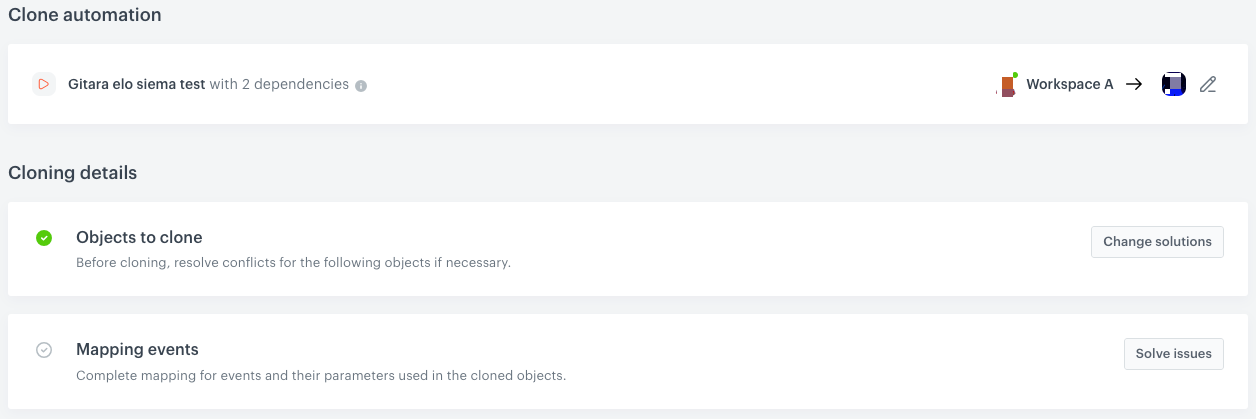

Resolving cloning issues

An issue occurs when:

An object of the same type with the same name already exists in the target workspace The system could not find the equivalent events, attributes, tags, item feed, item attributes, sender account, catalog, promotion, or voucher pool To resolve a problem, go to the details of each section whose button says Solve issues.

Section name	Conflict solution

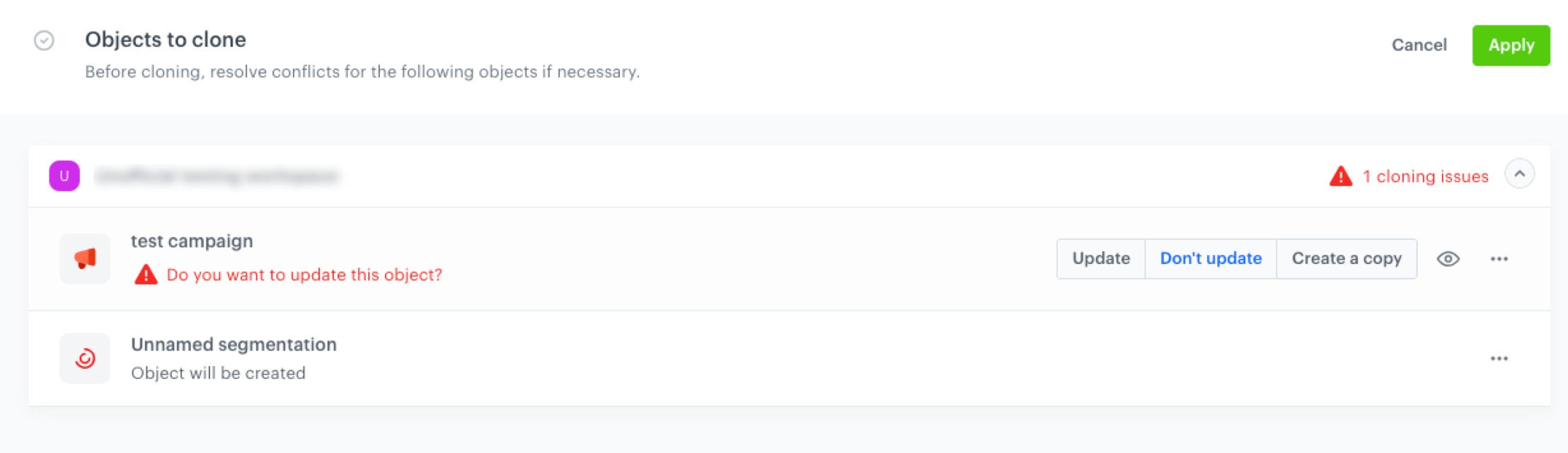

Objects to clone	You can select one of the following conflict solutions: - Update - overwrite the object in the target workspaces with the object version from the source workspace - Don’t update - don’t overwrite (skip cloning) - Create a copy - create a copy of the object version from the source workspace in the target workspaces, the copied object inherits the objects name from the source workspace.

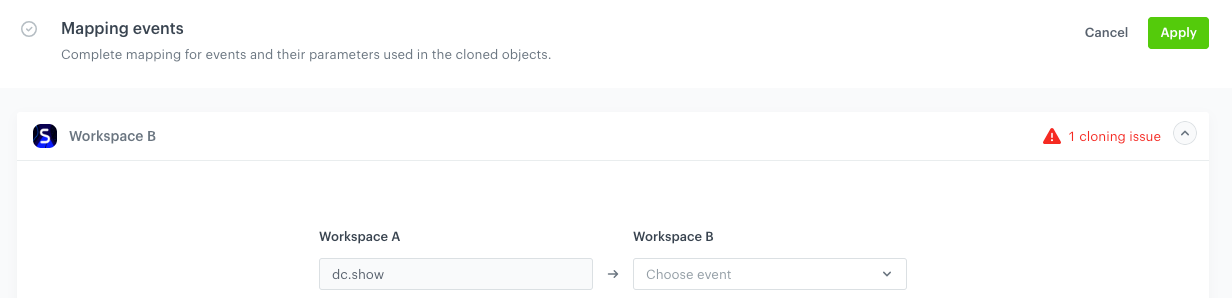

Mapping events	From the dropdown list, select an equivalent event. If there is no equivalent event, you can create one by clicking Create [event name] on the top of the dropdown list.
Mapping parameters	From the dropdown list, select an equivalent customer attribute. There is no possibility of adding a new customer while cloning.
Mapping customer tags	From the dropdown list, select an equivalent tag. If there is no equivalent tag, you can create one by clicking Create [tag name] on the top of the dropdown list.
Mapping IQL variables	From the dropdown list, select an equivalent item attribute. If there is no equivalent item attribute, you must go to the target workspace and create one.
Mapping metrics	From the dropdown list, select an equivalent metric. If there is no equivalent metric, you must go to the target workspace and create one.
Mapping Item attributes	From the dropdown list, select an equivalent item attribute. If there is no equivalent item attribute, you must go to the target workspace and create one.
Mapping metadata feed	From the dropdown list, select an equivalent metadata catalog. If there is no equivalent metadata catalog, you must go to the target workspace and create one.
Mapping context	From the dropdown list, select an equivalent item attribute. If there is no equivalent item attribute, you must go to the target workspace and create one.
Mapping display attributes	From the dropdown list, select an equivalent item attribute. If there is no equivalent item attribute, you must go to the target workspace and create one.
Mapping product feed	From the dropdown list, select an equivalent item feed. If there is no equivalent item feed, you must go to the target workspace and create one.
Mapping settings/objects	In this section, you may resolve several conflicts at the same time connected with sender account, voucher pool, promotion, catalog, incoming integration, external integration authorization (connections), transformation diagram, time optimizer model. From the dropdown list, select equivalent objects in the target workspace. If there are any, go to the target workspace and create them. - Creating email account - Creating SMS account - Creating voucher pool - Creating a promotion - Creating a catalog - Creating transformation diagram - Enable time optimizer - To enable connection for external integration, create a draft workspace with the selected integration node and in the settings of the create a connection.

Objects created as a result of cloning

The elements created during cloning are available in their respective modules on target workspace, for example events are added in Data Management > Events.

Jinjava-related issues

The mapping of such objects as catalogs, voucher pools, promotions is available only when the workflow contains Jinjava code referencing these objects. When it comes to Jinjava references to AI recommendations, aggregates, and other analysis types, mapping is not unnecessary because these objects are cloned automatically to the target workspace.

The list below contains the cases which can cause issues in detecting dependencies:

• If the Jinjava is incorrect (for example, missing endif), the dependency to such Jinjava will not be detected.
• If you clone a worfklow with unsuported Jinjava (for example, the socialproof tag in email template), the dependency will not be detected.
• If the Jinjava code is inserted in the comment snippet {# commentary #}, the dependency to such Jinjava will not be detected.
• In case a message template in a workflow contains a variable replacing an element of Jinjava code with a dependency, the dependency may not be found. For example, if you used a Synerise insert select, after cloning, you must open the content of the cloned content in the target workspace and add the insert manually to the content.
